I-87005W

I-87005W

ICP DAS
SKU: 05750400

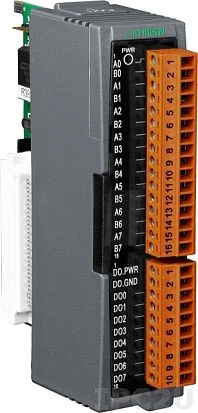

8-channel thermistor input and 8-channel digital output module (Gray Cover)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
8 Hz
Thermistor
Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L300, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output voltage
5~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
Construction
Construction Chassis
Plastic Chassis
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
8 Hz
Thermistor
Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L300, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output voltage
5~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
Construction
Construction Chassis
Plastic Chassis
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
8 Hz
Thermistor
Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L300, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output voltage
5~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
Construction
Construction Chassis
Plastic Chassis
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
8 Hz
Thermistor
Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L300, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output voltage
5~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
Documentation
Datasheet I-87005W
Documentation
Datasheet I-87005W
Documentation
Datasheet I-87005W
Documentation
Datasheet I-87005W
