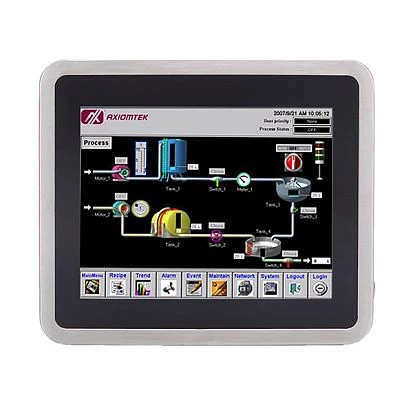

GOT810-845-R

GOT810-845-R

SKU: 08431400

10.4" XGA TFT 350 nit, IP66/IP69K-rated Fanless Touch Panel Computer with Intel Celeron N3060 1.6GHz, resistive touchscreen, DDR3L, GbE LAN, 2xCOM, 2xUSB 2.0, SATA, mSATA, 2xPCIe Mini, 9...36VDC M12, -10...+50C

Price on request

Construction

Construction Chassis

Heavy-Duty Steel Chassis

Mounting Configuration

Wall VESA 100

Protection Level of Front Side (Panel)

IP66, IP69K

Display

Display Type

LCD TFT

Diagonal

10.4 "

Maximum resolution

1024x768 Dots

Brightness

350 Cd/m2

Touch Screen

Touch Screen Type

Resistive

CPU

СPU Generation/Family

Braswell

Processor Installed

Intel Celeron N3060

Max CPU frequency

2.48 GHz

Chipset

Chipset

Intel Braswell SoC

Memory

Form-factor

DDR3L

Maximum Memory

8 GB

Ethernet

Total Ethernet

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

2

RS-232

1

RS-232/422/485

1

USB 2.0

2

Drive interfaces

mSATA

1

Extension Slots

Mini-PCIe/Mini Card

2

System Power Input

Input Voltage DC

9..36 V

Software

Operating System Compatibility

Windows 7, Windows 8, Windows Embedded Standard 8, Windows 8.1, Windows 10

Dimensions and weight

Width

284 mm

Height

241 mm

Depth

56 mm

Operating Conditions

Operating Temperature

-10..50 °C

Vibration

2G, 10 - 500Hz, random for SSD/mSATA

Dimensions

Net Weight

2.8 kg

Gross Weight

4 kg

Construction

Construction Chassis

Heavy-Duty Steel Chassis

Mounting Configuration

Wall VESA 100

Protection Level of Front Side (Panel)

IP66, IP69K

Display

Display Type

LCD TFT

Diagonal

10.4 "

Maximum resolution

1024x768 Dots

Brightness

350 Cd/m2

Touch Screen

Touch Screen Type

Resistive

CPU

СPU Generation/Family

Braswell

Processor Installed

Intel Celeron N3060

Max CPU frequency

2.48 GHz

Chipset

Chipset

Intel Braswell SoC

Memory

Form-factor

DDR3L

Maximum Memory

8 GB

Ethernet

Total Ethernet

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

2

RS-232

1

RS-232/422/485

1

USB 2.0

2

Drive interfaces

mSATA

1

Extension Slots

Mini-PCIe/Mini Card

2

System Power Input

Input Voltage DC

9..36 V

Software

Operating System Compatibility

Windows 7, Windows 8, Windows Embedded Standard 8, Windows 8.1, Windows 10

Dimensions and weight

Width

284 mm

Height

241 mm

Depth

56 mm

Operating Conditions

Operating Temperature

-10..50 °C

Vibration

2G, 10 - 500Hz, random for SSD/mSATA

Dimensions

Net Weight

2.8 kg

Gross Weight

4 kg

Construction

Construction Chassis

Heavy-Duty Steel Chassis

Mounting Configuration

Wall VESA 100

Protection Level of Front Side (Panel)

IP66, IP69K

Display

Display Type

LCD TFT

Diagonal

10.4 "

Maximum resolution

1024x768 Dots

Brightness

350 Cd/m2

Touch Screen

Touch Screen Type

Resistive

CPU

СPU Generation/Family

Braswell

Processor Installed

Intel Celeron N3060

Max CPU frequency

2.48 GHz

Chipset

Chipset

Intel Braswell SoC

Memory

Form-factor

DDR3L

Maximum Memory

8 GB

Ethernet

Total Ethernet

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

2

RS-232

1

RS-232/422/485

1

USB 2.0

2

Drive interfaces

mSATA

1

Extension Slots

Mini-PCIe/Mini Card

2

System Power Input

Input Voltage DC

9..36 V

Software

Operating System Compatibility

Windows 7, Windows 8, Windows Embedded Standard 8, Windows 8.1, Windows 10

Dimensions and weight

Width

284 mm

Height

241 mm

Depth

56 mm

Operating Conditions

Operating Temperature

-10..50 °C

Vibration

2G, 10 - 500Hz, random for SSD/mSATA

Dimensions

Net Weight

2.8 kg

Gross Weight

4 kg

Construction

Construction Chassis

Heavy-Duty Steel Chassis

Mounting Configuration

Wall VESA 100

Protection Level of Front Side (Panel)

IP66, IP69K

Display

Display Type

LCD TFT

Diagonal

10.4 "

Maximum resolution

1024x768 Dots

Brightness

350 Cd/m2

Touch Screen

Touch Screen Type

Resistive

CPU

СPU Generation/Family

Braswell

Processor Installed

Intel Celeron N3060

Max CPU frequency

2.48 GHz

Chipset

Chipset

Intel Braswell SoC

Memory

Form-factor

DDR3L

Maximum Memory

8 GB

Ethernet

Total Ethernet

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

2

RS-232

1

RS-232/422/485

1

USB 2.0

2

Drive interfaces

mSATA

1

Extension Slots

Mini-PCIe/Mini Card

2

System Power Input

Input Voltage DC

9..36 V

Software

Operating System Compatibility

Windows 7, Windows 8, Windows Embedded Standard 8, Windows 8.1, Windows 10

Dimensions and weight

Width

284 mm

Height

241 mm

Depth

56 mm

Operating Conditions

Operating Temperature

-10..50 °C

Vibration

2G, 10 - 500Hz, random for SSD/mSATA

Dimensions

Net Weight

2.8 kg

Gross Weight

4 kg

Documentation

Datasheet GOT810-845

Documentation

Datasheet GOT810-845

Documentation

Datasheet GOT810-845

Documentation

Datasheet GOT810-845
