Industrial Computers

Industrial Panel PCs

Rugged Panel-PCs

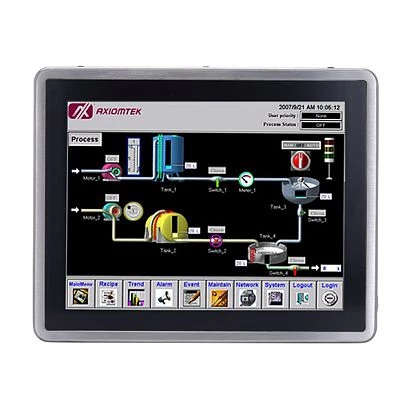

GOT-815L-511-R-DC

GOT-815L-511-R-DC

SKU: 07722700

15" XGA TFT 420 nit, IP66-rated Fanless Touch Panel Computer with Intel Core i5-7300U, 5-wire resistive touchscreen, 1x260-pin SO-DIMM DDR4-2133, 1x2.5" SSD, 2xCOM, 4xUSB 2.0, 1xGbe LAN, 2xPCle Mini Card slot, power input 9-36V DC

Price on request

Construction

Mounting Configuration

Panel

Display

Display Type

LCD TFT

Diagonal

15 "

Maximum resolution

1024x768 Dots

Brightness

420 Cd/m2

Touch Screen

Touch Screen Type

Resistive

CPU

СPU Generation/Family

Kaby Lake

Processor Installed

Intel Core i5-7300U

Max CPU frequency

3.5 GHz

Chipset

Chipset

Intel Kaby Lake SoC

Memory

Form-factor

DDR4

Socket Type

1xSODIMM

Maximum Memory

16 GB

Ethernet

Total Ethernet

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

2

USB Total

4

USB 2.0

4

Extension Slots

Mini-PCIe/Mini Card

2

Connectors

Connectors

2xDB9, RJ45 Ethernet, 4xUSB, DC Input

System Power Input

Input Voltage DC

9..36 V

Dimensions

Net Weight

5.2 kg

Gross Weight

8.4 kg

Construction

Mounting Configuration

Panel

Display

Display Type

LCD TFT

Diagonal

15 "

Maximum resolution

1024x768 Dots

Brightness

420 Cd/m2

Touch Screen

Touch Screen Type

Resistive

CPU

СPU Generation/Family

Kaby Lake

Processor Installed

Intel Core i5-7300U

Max CPU frequency

3.5 GHz

Chipset

Chipset

Intel Kaby Lake SoC

Memory

Form-factor

DDR4

Socket Type

1xSODIMM

Maximum Memory

16 GB

Ethernet

Total Ethernet

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

2

USB Total

4

USB 2.0

4

Extension Slots

Mini-PCIe/Mini Card

2

Connectors

Connectors

2xDB9, RJ45 Ethernet, 4xUSB, DC Input

System Power Input

Input Voltage DC

9..36 V

Dimensions

Net Weight

5.2 kg

Gross Weight

8.4 kg

Construction

Mounting Configuration

Panel

Display

Display Type

LCD TFT

Diagonal

15 "

Maximum resolution

1024x768 Dots

Brightness

420 Cd/m2

Touch Screen

Touch Screen Type

Resistive

CPU

СPU Generation/Family

Kaby Lake

Processor Installed

Intel Core i5-7300U

Max CPU frequency

3.5 GHz

Chipset

Chipset

Intel Kaby Lake SoC

Memory

Form-factor

DDR4

Socket Type

1xSODIMM

Maximum Memory

16 GB

Ethernet

Total Ethernet

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

2

USB Total

4

USB 2.0

4

Extension Slots

Mini-PCIe/Mini Card

2

Connectors

Connectors

2xDB9, RJ45 Ethernet, 4xUSB, DC Input

System Power Input

Input Voltage DC

9..36 V

Dimensions

Net Weight

5.2 kg

Gross Weight

8.4 kg

Construction

Mounting Configuration

Panel

Display

Display Type

LCD TFT

Diagonal

15 "

Maximum resolution

1024x768 Dots

Brightness

420 Cd/m2

Touch Screen

Touch Screen Type

Resistive

CPU

СPU Generation/Family

Kaby Lake

Processor Installed

Intel Core i5-7300U

Max CPU frequency

3.5 GHz

Chipset

Chipset

Intel Kaby Lake SoC

Memory

Form-factor

DDR4

Socket Type

1xSODIMM

Maximum Memory

16 GB

Ethernet

Total Ethernet

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

2

USB Total

4

USB 2.0

4

Extension Slots

Mini-PCIe/Mini Card

2

Connectors

Connectors

2xDB9, RJ45 Ethernet, 4xUSB, DC Input

System Power Input

Input Voltage DC

9..36 V

Dimensions

Net Weight

5.2 kg

Gross Weight

8.4 kg

Documentation

Datasheet GOT-815L-511

Documentation

Datasheet GOT-815L-511

Documentation

Datasheet GOT-815L-511

Documentation

Datasheet GOT-815L-511
