GOT-815-834-R-DC
AXIOMTEK
SKU: 06808300

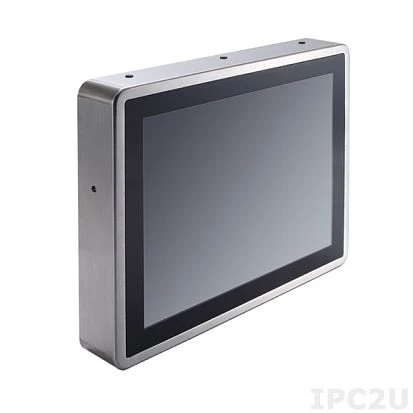

15" XGA TFT 420 nit, IP66-rated Fanless Touch Panel Computer with Intel Atom E3827 1.75GHz, resistive touchscreen, 1x204-pin DDR3L, 1x2.5" SSD, 1xCF slot, 2xCOM, 2xUSB 2.0, 1xGbe LAN, 2xPCle Mini Card slot, power input 9-36V DC
Price on request
Available
Available
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
420 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3827
Max CPU frequency
1.75 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
4
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Connectors
Connectors
6xM12
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
382 mm
Height
305 mm
Depth
55 mm
Operating Conditions
Operating Temperature
-20..55 °C
Vibration
2G, 5 ~ 500Hz, random for 2.5" SSD; 2G, 5 ~ 500Hz, random for CompactFlash
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
5.2 kg
Gross Weight
8.4 kg
