ICP-DAS iDCS-8000 Ethernet Expansion Slots

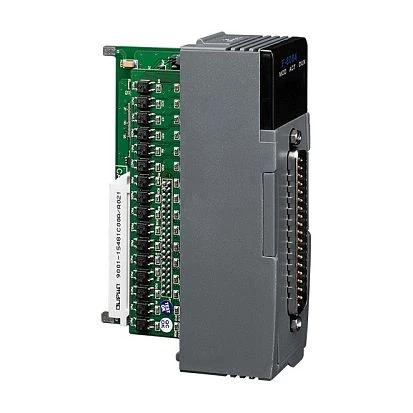

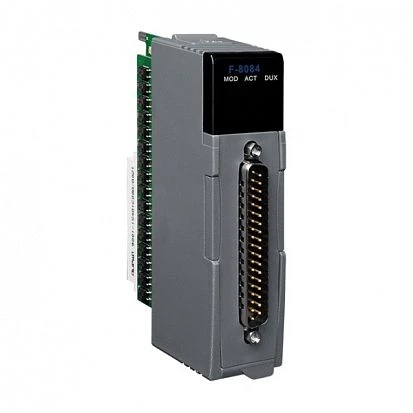

F-8084

F-8084

ICP DAS
SKU: 66218000
8-ch, Single/Duplex, frequency 0...100KHz, Isolated, one COM for all PI
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Digital Input
Total channels of digital input
8
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~1 V
Level of Logic "1"
4.5~30 V
Signal Type
Frequency
Counter capacity
32 Bit
Number of channels
8
Max frequency
500 kHz
Connectors
Connectors
DB37 Male
Dimensions and weight
Width
30 mm
Depth
85 mm
Height
115 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
IEC 61000-6-2, IEC 61000-6-4
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.5 kg
