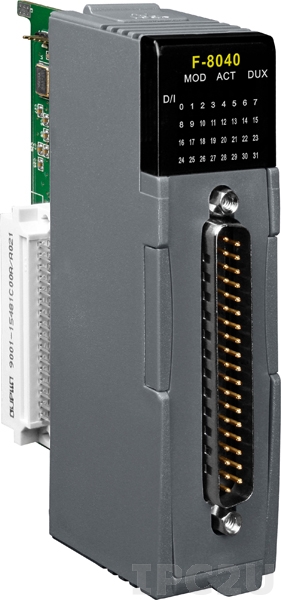

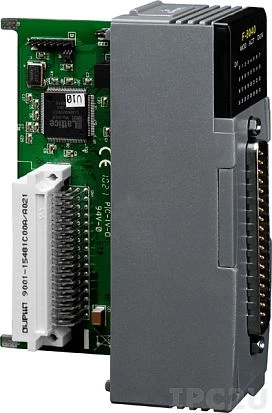

F-8040

F-8040

ICP DAS
SKU: 66217800
32-ch, Single/Duplex, 24VDC in 5.1mA, Isolated, one COM for all DI, LED display
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Digital Input
Total channels of digital input
32
Isolation of Digital Input
3000 V
Type
Wet contact
Sink/Source
Sink, Source
Level of Logic "0"
0~11 V
Level of Logic "1"
18~30 V
Connectors
Connectors
DB37 Male
Dimensions and weight
Width
30 mm
Depth
85 mm
Height
115 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
IEC 61000-6-2, IEC 61000-6-4
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.5 kg
