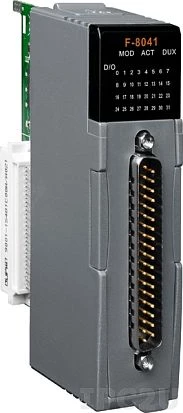

F-8041

F-8041

ICP DAS
SKU: 66217900
32-ch, Single/Duplex, 100mA/channel, Isolated, one COM for all DO, LED Display
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Max. load current
500 mA
Output voltage
36~36 V
Connectors
Connectors
DB37 Male
Dimensions and weight
Width
30 mm
Depth
85 mm
Height
115 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
IEC 61000-6-2, IEC 61000-6-4
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.5 kg
Construction
Construction Chassis
Plastic Chassis
Digital Output
Total channels of digital output
