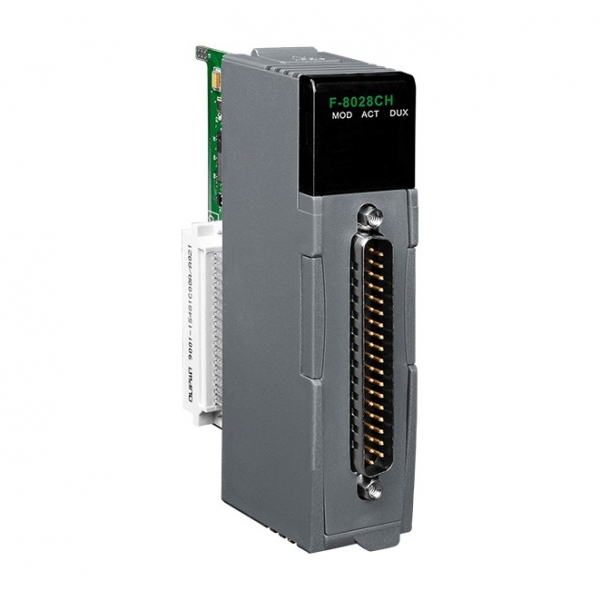

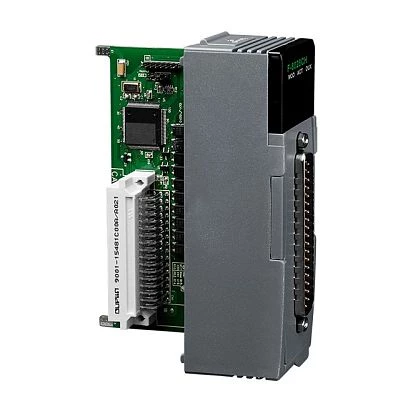

F-8028CH

F-8028CH

ICP DAS
SKU: 66340700
8-channel Isolated Analog Output Redundant Module with HART Master Interface (Gray Cover) (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Analog Output
Channels of analog input
8
DAC Bit Rate
16 Bit
Current range
4...20 mA
Connectors
Connectors
DB37 Male
Dimensions and weight
Width
30 mm
Depth
85 mm
Height
115 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
IEC 61000-6-2, IEC 61000-6-4
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.5 kg
Construction
