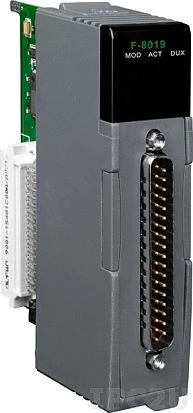

F-8019
ICP DAS
SKU: 06040500
8-channel Thermocouple & mV Input Module
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
8 Hz
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-150 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, R: -50...+1600 °С, S: -50...+1760 °С
Connectors
Connectors
DB37 Male
Dimensions and weight
Width
30 mm
Depth
85 mm
Height
115 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
IEC 61000-6-2, IEC 61000-6-4
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.5 kg
