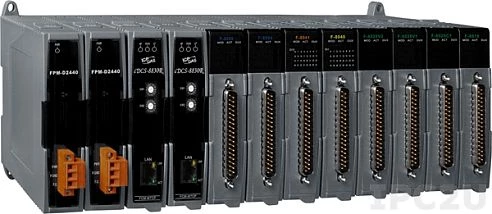

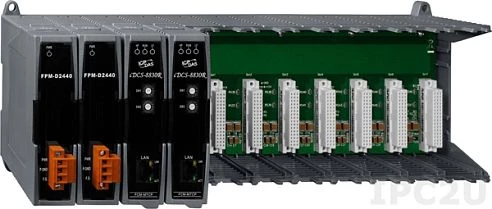

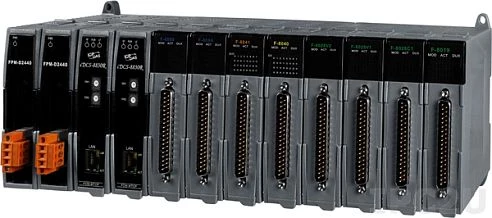

IDCS-8830
ICP DAS
SKU: 66218300
Intelligent Remote Redundant Ethernet I/O expansion unit with 2x Power (FPM-D2440) + 2x Communication Module (FCM-MTCP) + 1x 8 I/O slot Backplane
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
80186
Max CPU frequency
0.08 GHz
Expansion Module
Quantity of Slots
8
Supported Module
F-8000 series
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus TCP server
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
374 mm
Depth
100 mm
Height
132 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.5 kg
