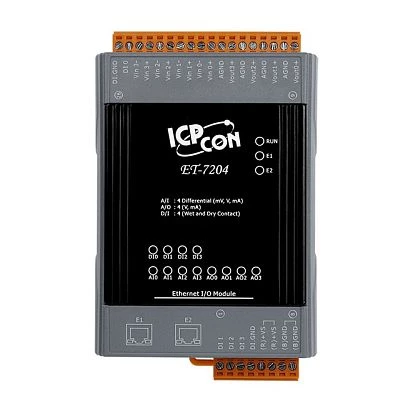

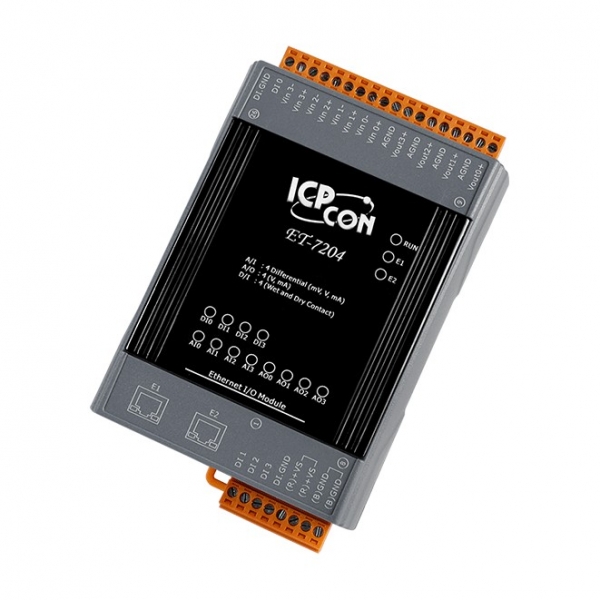

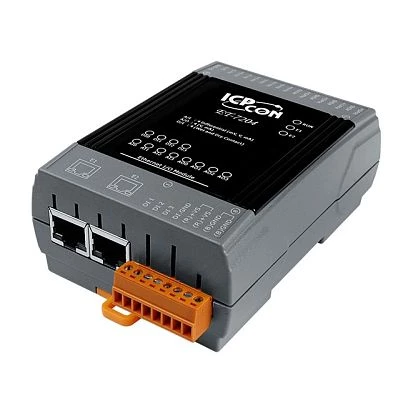

ET-7204

ET-7204

ICP DAS
SKU: 06788500
Ethernet I/O Module with 4-channels AI, 4-channels AO, 4-channels DI (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Analog Input
Total channels of analog input
4
Number of Bits
16 Bit
Voltage range
+/-500 mV, +/-1 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
4
Analog Output
Channels of analog input
4
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Digital Input
Total channels of digital input
4
Type
Dry contact, Wet contact
Level of Logic "0"
3.5~30 V
Level of Logic "1"
0~1 V
Sink/Source
Sink, Source
Counter
100Hz, 32 bit
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
76 mm
Depth
38 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
