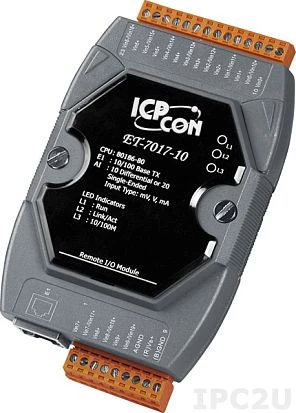

ET-7017-10

ET-7017-10

ICP DAS
SKU: 05578400
10/20-channel Analog Input with High Voltage Protection
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Analog Input
Total channels of analog input
20
Number of Bits
16 Bit
Voltage range
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Single-Ended channels
20
Differential channels
10
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
