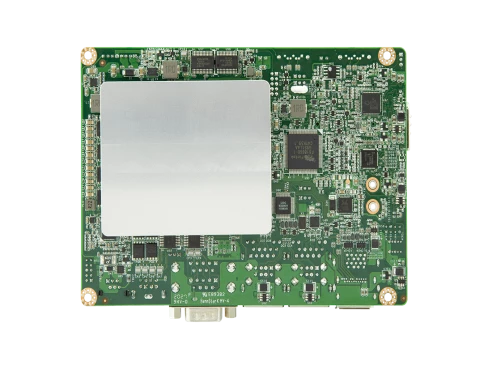

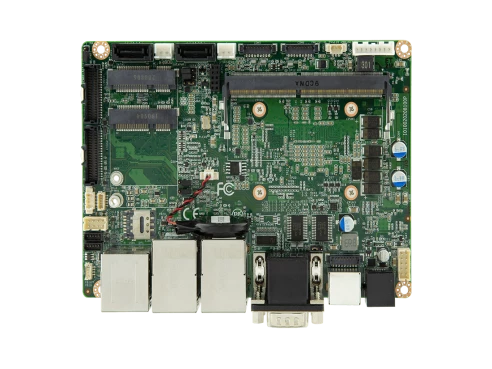

EmCORE-a10R2-1102G

EmCORE-a10R2-1102G

Arbor
SKU: 11209000
3.5" Embedded Mainboard, AMD Ryzen R1102G 1.2GHz CPU, Up to 16GB DDR4 RAM, 2xLVDS, DP, 2xGbE LAN, 6xCOM, 2xUSB 3.0, 6xUSB 2.0, 8-bit DIO, 2xSATA, 1xFull-Size MiniPCIe, 1xHalf-Size MiniPCIe, SIM, Audio, 8-13.2VDC-in
Price on request
Available
Available

System Architecture
Form Factor
3.5"
CPU
Processor Installed
AMD Ryzen R1102G
Socket
CPU onboard
Max CPU frequency
1.2 GHz
Chipset
Chipset
Fintek F81866
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
AMD Radeon Graphics Vega
Interfaces
DisplayPort, 2xLVDS
Ethernet
Controller Type
Realtek RTL8111 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
USB Total
8
USB 2.0
6
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC269
Drive interfaces
SATA 3
2
Extension Slots
Total
3
SIM Card slots
Yes, 1, Micro-SIM
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

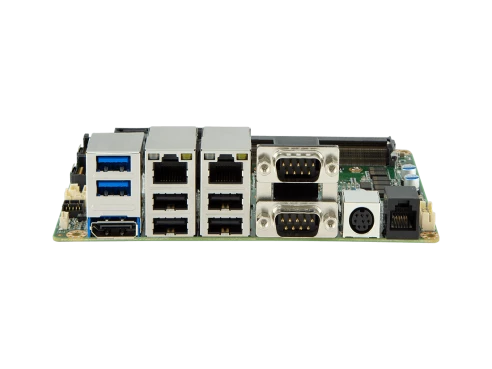

2xDB9, 2xRJ45 Ethernet, 6xUSB, DC Input, Display Port
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Dimensions
Net Weight
0.36 kg
Gross Weight
0.55 kg
