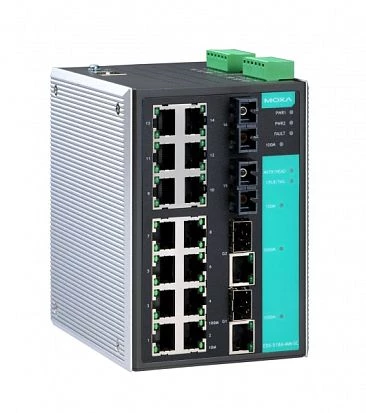

EDS-518A-MM-SC
MOXA
SKU: 03319600
Industrial Managed Redundant Ethernet Switch with 14x 10/100 BaseTx Ports, 2x Multi Mode 100 BaseFX Ports, SC Type Connectors and 2x 10/100/1000 BaseTx Ports, RoHS
Price on request
Available on order
Available on order
EDS-518A-MM-SC
Managed switch EDS-518A-MM-SC designed by MOXA is a perfect solution for creating complex industrial Fast Ethernet networks. The device houses 14 10/100 BaseT Ethernet ports, 2 10/100 BaseFX ports (multi-mode optical fiber, SC slot, data transfer distance up to 5 km) and 2 10/100/1000 Base combo ports (RJ-45 + SFP). The switch supports intelligent functions of management, control and enhanced network security. The basic model reliability is confirmed by mean time between failures that exceeds 40 years. MOXA’s 18-port network Ethernet switch EDS-518A-MM-SC: description and features: SNMP v1/v2/3 and RMON protocols ensure safe remote management on different layers, as well as pro-active monitoring. Integrated protocols TACACS+, IEEE 802.1X, HTTPS, SSH help to perform user authentication and encryption, in order to protect data. The device supports the following intelligent functions: IGMP and GMRP (multicast traffic filtration), VLAN and GVRP (facilitated planning), QoS (prioritizing), LACP (flexible network connections). All necessary software protection functions are provided: restricted bandwidth, port mirroring for status diagnostics and a discrete output relay channel for alerting a user. The fanless metal housing that rates IP30 protects the electronic components from solid particles ingress, shocks and vibrations (МЭК-60068/IEC-60068). The device is available in wall and DIN-rail mounting configurations. Taking into account its opportunities, the device can be characterized by high power supply efficiency and consumes 12.24 W (0.5 A at 24 V). The redundant power circuit secures uninterruptible operation. Thanks to multiple ports and 2 Gigabit ports, Ethernet switch EDS-518A-MM-SC from MOXA can play the main role in any industrial network. The device features high level of protection, whereas, the field-specific certificates (DNV, GL, NK, Class I Div. 2, ATEX Zone 2) allow you to use this switch on transport, in marine industry, in explosion hazardous environment of oil and gas industry.
EDS-518A-MM-SC
Managed switch EDS-518A-MM-SC designed by MOXA is a perfect solution for creating complex industrial Fast Ethernet networks. The device houses 14 10/100 BaseT Ethernet ports, 2 10/100 BaseFX ports (multi-mode optical fiber, SC slot, data transfer distance up to 5 km) and 2 10/100/1000 Base combo ports (RJ-45 + SFP). The switch supports intelligent functions of management, control and enhanced network security. The basic model reliability is confirmed by mean time between failures that exceeds 40 years. MOXA’s 18-port network Ethernet switch EDS-518A-MM-SC: description and features: SNMP v1/v2/3 and RMON protocols ensure safe remote management on different layers, as well as pro-active monitoring. Integrated protocols TACACS+, IEEE 802.1X, HTTPS, SSH help to perform user authentication and encryption, in order to protect data. The device supports the following intelligent functions: IGMP and GMRP (multicast traffic filtration), VLAN and GVRP (facilitated planning), QoS (prioritizing), LACP (flexible network connections). All necessary software protection functions are provided: restricted bandwidth, port mirroring for status diagnostics and a discrete output relay channel for alerting a user. The fanless metal housing that rates IP30 protects the electronic components from solid particles ingress, shocks and vibrations (МЭК-60068/IEC-60068). The device is available in wall and DIN-rail mounting configurations. Taking into account its opportunities, the device can be characterized by high power supply efficiency and consumes 12.24 W (0.5 A at 24 V). The redundant power circuit secures uninterruptible operation. Thanks to multiple ports and 2 Gigabit ports, Ethernet switch EDS-518A-MM-SC from MOXA can play the main role in any industrial network. The device features high level of protection, whereas, the field-specific certificates (DNV, GL, NK, Class I Div. 2, ATEX Zone 2) allow you to use this switch on transport, in marine industry, in explosion hazardous environment of oil and gas industry.
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
Type 10/100 Mbit/s
2xSC, 14xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Fiber
Number of Optical Ports
2xSC
Type of Fibre Optic
multi-mode
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
8000
Packet Buffer Size
2 kBit
Max. Number of VLANs
64
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Expansion Module
Supported Module
SFP-1G
LED / Controls
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
94 mm
Depth
142.7 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032 Class A
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, GL, NK
Safety
UL 60950-1, UL 508, EN 60950-1, CSA C22.2 No. 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2.19 kg
