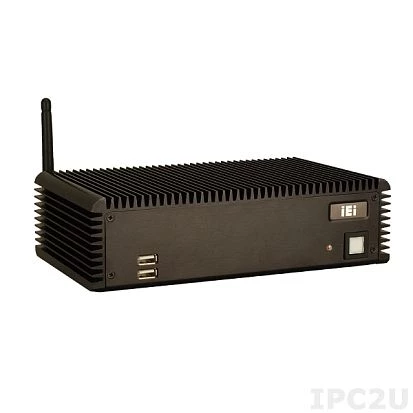

ECW-281BWDW/D2550/2GB

IEI
SKU: 06331400
Fanless embedded system with WAFER-CV-D25501, Intel ATOM D2550 1.86 GHz dual core, 2GB DDR3 SO-DIMM, VGA, 4xCOM, 2xGLAN, built-in 802.11 b/g/n 2T2R wirless module, 4xUSB 2.0, 2x miniPCIe, 9...36V DC in
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Wall, Wall VESA 100
Type
Fanless
CPU
Processor Installed
Intel Atom D2550
Socket
CPU onboard
Max CPU frequency
1.86 GHz
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3
ECC
No
Default on Board Memory
2 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek 8111E
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB Total
4
USB 2.0
4
Digital Input-Output
Channels of DIO
8
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Line Out, DC input (terminal block), DB9 DIO
System Power Input
Input Voltage DC
9..36 V
Dimensions and weight
Width
229 mm
Height
64 mm
Depth
132 mm
Operating Conditions
Operating Temperature
-10..50 °C
Shock
3G Half-sine wave, 11ms 3 shocks per axis
Standards and Certifications
MIL-STD-810
MIL-STD-810F Test Method 514.5C-2 Vibration
Dimensions
Net Weight
2.1 kg
Gross Weight
3.35 kg
