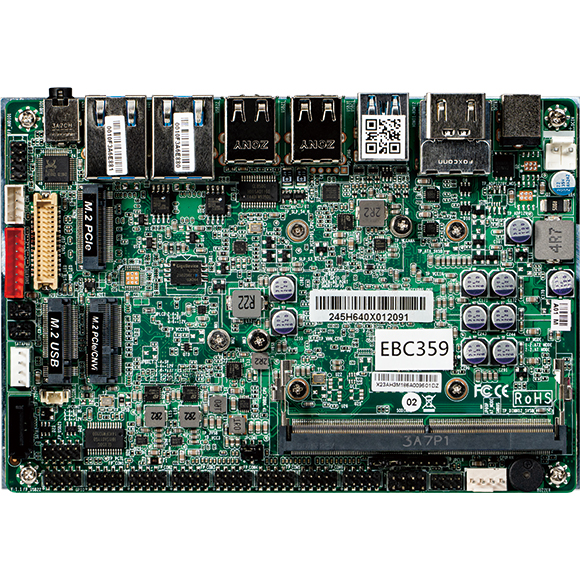

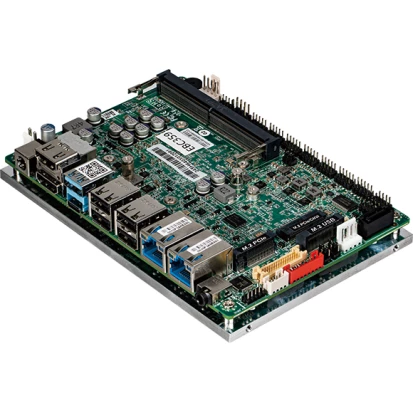

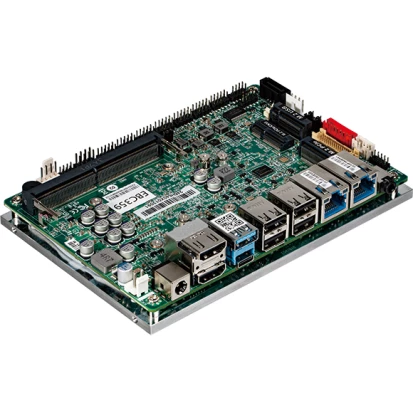

EBC-359
NEXCOM
SKU: 80087900
3.5" Embedded Board, Intel N97 3.6GHz CPU, Up to 16GB DDR5 RAM, 2xHDMI, LVDS/eDP, 2x2.5GbE LAN, 1xUSB-C DP Alt., 1xUSB 3.2, 4xUSB 2.0, 4xUSB 2.0 header, 6xCOM header, 8-bit GPIO, 1xSATA3, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 12-28VDC-in
Price on request
Available
Available
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 2xHDMI, eDP, Type C DP
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
10
USB 2.0
8
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xUSB 2.0, 30-pin LVDS, GPIO, 5xCOM
Connectors
2xHDMI, 2xRJ45 Ethernet, 5xUSB, Mic In, Line Out, DC Input, USB type C
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
148 mm
Length
102 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.45 kg
Gross Weight
0.6 kg
