EBC-357X-E3930

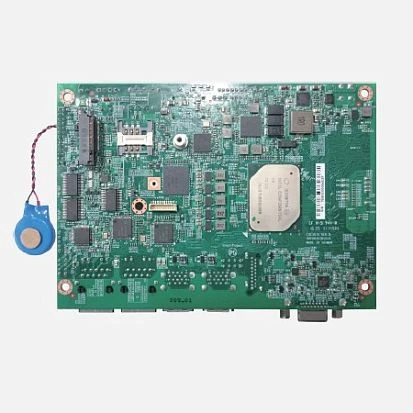

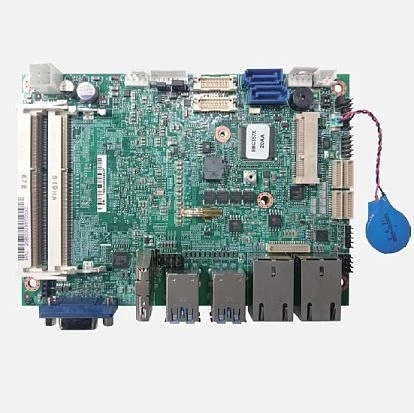

EBC-357X-E3930

NEXCOM
SKU: 07457800
3.5" low power board Intel Atom Apollo Lake Dual core (E3930) SOC, Support DDR3L x2, Support M.2 module, miniPCIe, 4x USB3.0, 2x SATA2.0, 2x GbE, 3x RS232, 1x RS232/422/485, VGA,HDMI,LVDS 24/48-bit, DC 12V input; wide temperature -40 to +85 C
Price on request
Available
Available

System Architecture
Form Factor
3.5"
Construction
Type
Fan
CPU
Processor Installed
Intel Atom x5-E3930
Max CPU frequency
1.8 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
LVDS, HDMI, VGA
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
Audio
Audio Controller
Realtek ALC886
Drive interfaces
mSATA
1
Extension Slots
SIM Card slots
1
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
4xCOM, 10-pin RS-232, 10-pin RS-232/422/485
Connectors
DB15 VGA, LVDS, HDMI, 2xRJ45 Ethernet, 4xUSB, External SATA
Dimensions and weight
Width
102 mm
Length
146 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Gross Weight
2 kg
