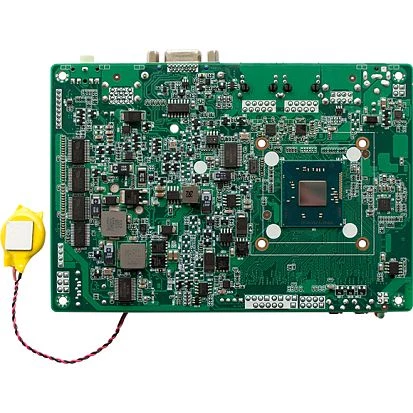

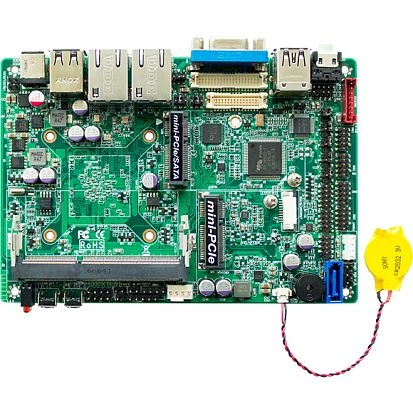

EBC-355A-N2930
NEXCOM
SKU: 80088500
3.5" Embedded Board, Intel Atom N2930 1.8GHz CPU, Up to 8GB DDR3L RAM, VGA, LVDS/eDP, 2xGbE LAN, 1xUSB 3.0, 3xUSB 2.0, 4xUSB 2.0 header, 4xCOM header, 8-bit GPIO, 1xSATA2, 2xMiniPCIe Half/Full-Size, Audio, 9-24VDC-in
Price on request
Available
Available
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron N2930
Socket
FCBGA1170
Max CPU frequency
2.16 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, VGA, eDP
Ethernet
Controller Type
Realtek 8111G
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
8
USB 2.0
7
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 2
1
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Internal Ports
4xCOM, 4xUSB 2.0, GPIO
Connectors
DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
148 mm
Length
102 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.45 kg
Gross Weight
0.6 kg
