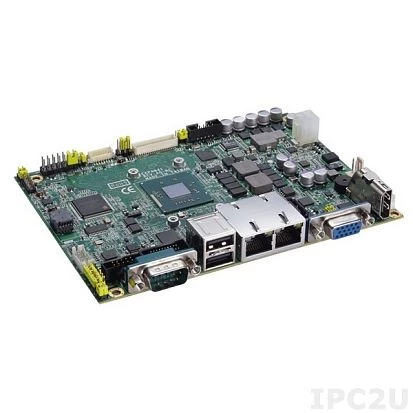

CAPA841VHGGA-E3815

AXIOMTEK
SKU: 06583000
3.5" Embedded CPU Card with Intel Atom E3815 1.46GHz, DDR3L SO-DIMM, VGA/LVDS/HDMI, 2xLAN, 4xCOM, 4xUSB, Audio
Price on request
Available
Available

System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3815
Max CPU frequency
1.46 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, VGA
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB 2.0
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Intel HD Audio
Drive interfaces
CFast Slots
1
Extension Slots
Total
2
SIM Card slots
Yes, 1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
SATA 2, 10-pin DIO, 10-pin USB 2.0, 4-pin Power, 10-pin Audio, 10-pin RS-232/422/485, 3-pin SMBus, 40-pin LVDS, 20-pin 2xRS-232
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 2xUSB
Software
Operating System Compatibility
Windows 7, Windows 8, Windows 10
Dimensions and weight
Width
104 mm
Length
146 mm
Operating Conditions
Operating Temperature
-40..75 °C
Dimensions
Gross Weight
0.3 kg
