CAPA313HGGA-N3350-ZIO

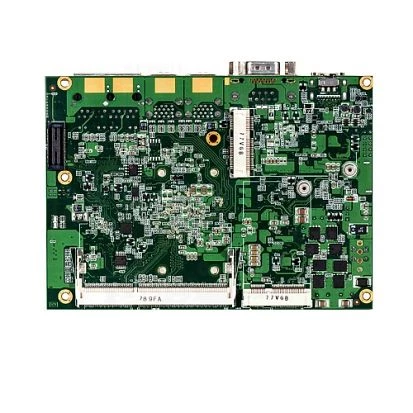

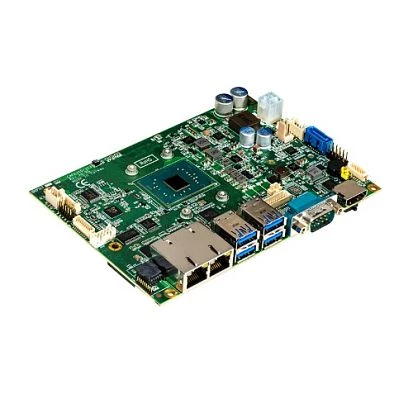

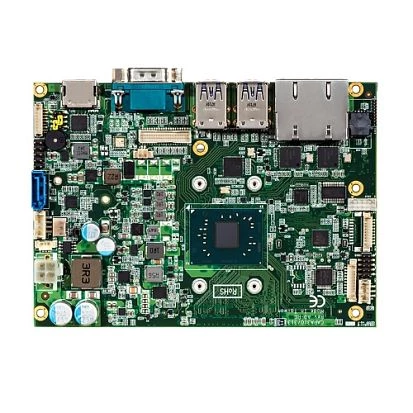

CAPA313HGGA-N3350-ZIO

AXIOMTEK
SKU: 08040600
3.5" Embedded CPU Card with Intel Celeron N3350 2.4GHz, 1xDDR3L SO-DIMM, 1xmSATA, 1xSATA 600, HDMI/LVDS, 2xCOM, 2xLAN, 4xUSB 3.0, 2xUSB 2.0, 1xUSB, 1xPCIex1, 1xLPC, 1xMini PCIe, 1xZIO Audio, -20C..+60C
Price on request
Available
Available

System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Number of CPU
1
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
Extension Slots
Total
2
PCI Express x1
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
COM, 2xUSB 2.0, 16-pin LVDS, 10-pin Audio
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB
Dimensions and weight
Width
146 mm
Length
104 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.3 kg
