CAPA312HGGA-N4200

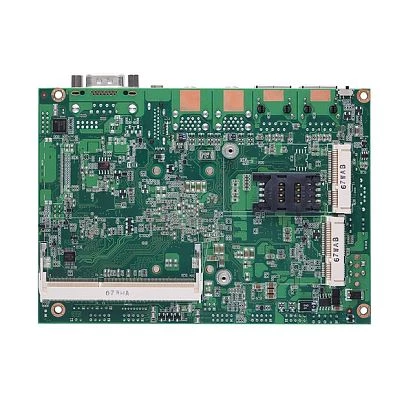

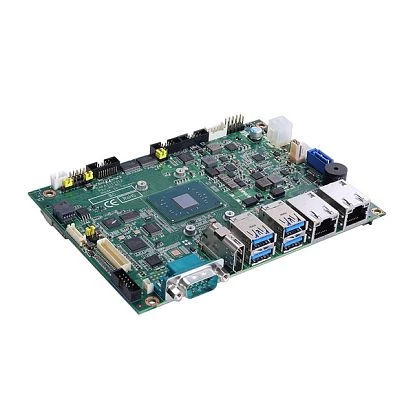

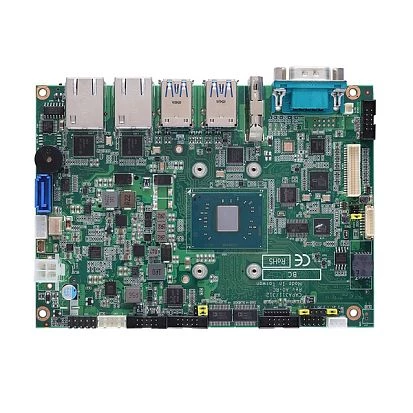

CAPA312HGGA-N4200

AXIOMTEK
SKU: 07628700
3.5" Embedded CPU Card with Intel Pentium N4200 2.5GHz, 1xDDR3L SO-DIMM, HDMI/LVDS, 2xLAN, 4xCOM, 4xUSB 3.0, 2xUSB 2.0, Audio, -20C..+60C
Price on request
Available
Available

System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Socket
CPU onboard
Max CPU frequency
2.5 GHz
Number of CPU
1
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
Extension Slots
Total
2
SIM Card slots
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB
Dimensions and weight
Width
146 mm
Length
104 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.47 kg
Gross Weight
0.47 kg
