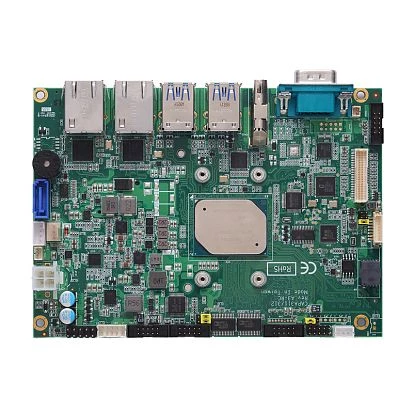

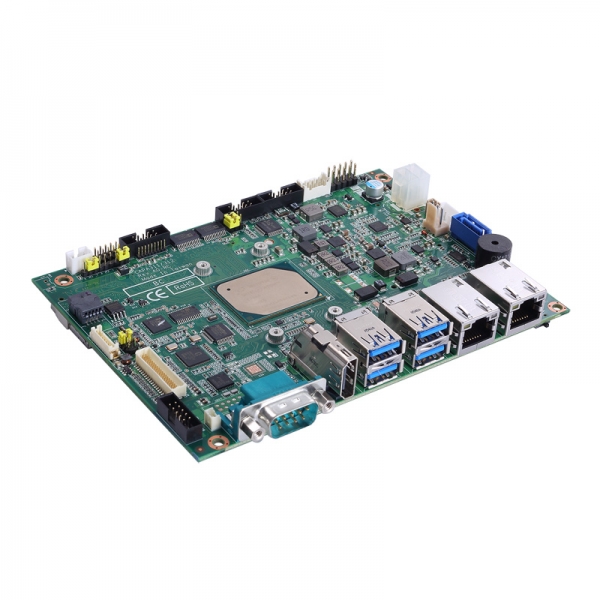

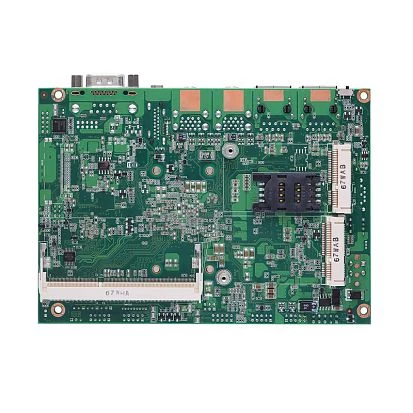

CAPA311HGGA-E3940

CAPA311HGGA-E3940

AXIOMTEK
SKU: 08803400
3.5" Embedded CPU Card with Intel Atom x5-E3940 1.6GHz, DDR3L, HDMI/LVDS, 2xGbE LAN, 4xCOM, 4xUSB 3.0, 2xUSB 2.0, mSATA, 1xSATA 600, 2xMini PCIe, SIM, DIO, Audio, -40C..+80C
Price on request
Available
Available

System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x5-E3940
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 500
Interfaces
LVDS, HDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662 HD
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Internal Ports
COM, 2xUSB 2.0, 10-pin Audio, 40-pin LVDS
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB
Dimensions and weight
Width
146 mm
Length
104 mm
Operating Conditions
Operating Temperature
-40..80 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.57 kg
Gross Weight
0.57 kg
