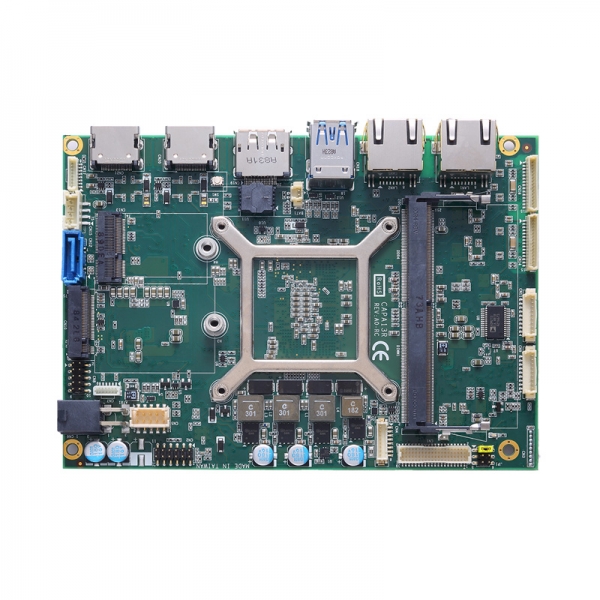

CAPA13RPH4G-V1807B

CAPA13RPH4G-V1807B

AXIOMTEK
SKU: 08790000
3.5" Embedded SBC with AMD RYZEN V1807B 3.35-3.8GHz, DDR4, DisplayPort, 2xHDMI, LVDS, 4xGbE LAN, 2xCOM, 2xUSB 3.1, 2xUSB 2.0, SATA-600, M.2 Key-B, DIO, Audio
Price on request
Available
Available

System Architecture
Form Factor
3.5"
CPU
Processor Installed
AMD Ryzen V1807B
Max CPU frequency
3.8 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
AMD Radeon RX Vega
Interfaces
DisplayPort, LVDS, 2xHDMI
Ethernet
Controller Type
Realtek 8111G
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Extension Slots
M.2
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, 2xUSB 2.0, 10-pin DIO
Connectors
2xHDMI, 4xRJ45, 2xUSB, Display Port
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
104 mm
Length
146 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.3 kg
