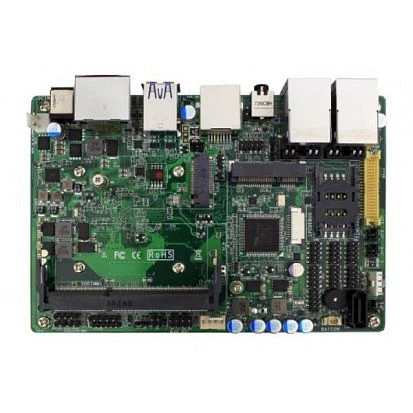

BYT-35-N2930

BYT-35-N2930

ICOP
SKU: 08385800
Intel Bay Trail N2930 CPU Module, VGA/eDP/LVDS, 2xGbE LAN, 6xCOM, USB 3.0, 3xUSB 2.0, 8bit GPIO, mPCIe, SATA, mSATA, Audio, 9..24VDC-in
Price on request
Available
Available
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Number of CPU
1
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Interfaces
2xDisplayPort
Ethernet
Controller Type
Realtek 8111G
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
USB Total
6
USB 2.0
3
USB v3.x
4
Audio
Audio Controller
Realtek ALC662
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
4xCOM, SATA 3, 2xUSB 2.0, 4-pin SMBus, 6-pin KB/MS, 30-pin LVDS, 10-pin GPIO, 40-pin eDP
Connectors
DB15 VGA, 2xRJ45, 4xUSB, Line Out, DC Input
Software
Operating System Compatibility
Windows 7, Linux OS, Windows 10
Dimensions and weight
Width
148 mm
Length
102 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
