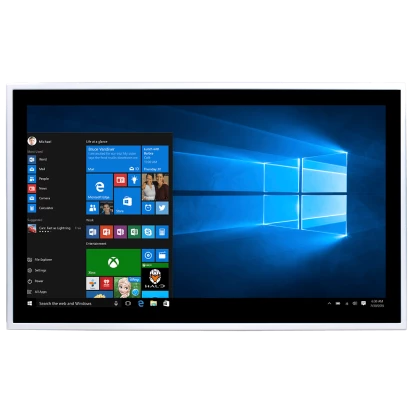

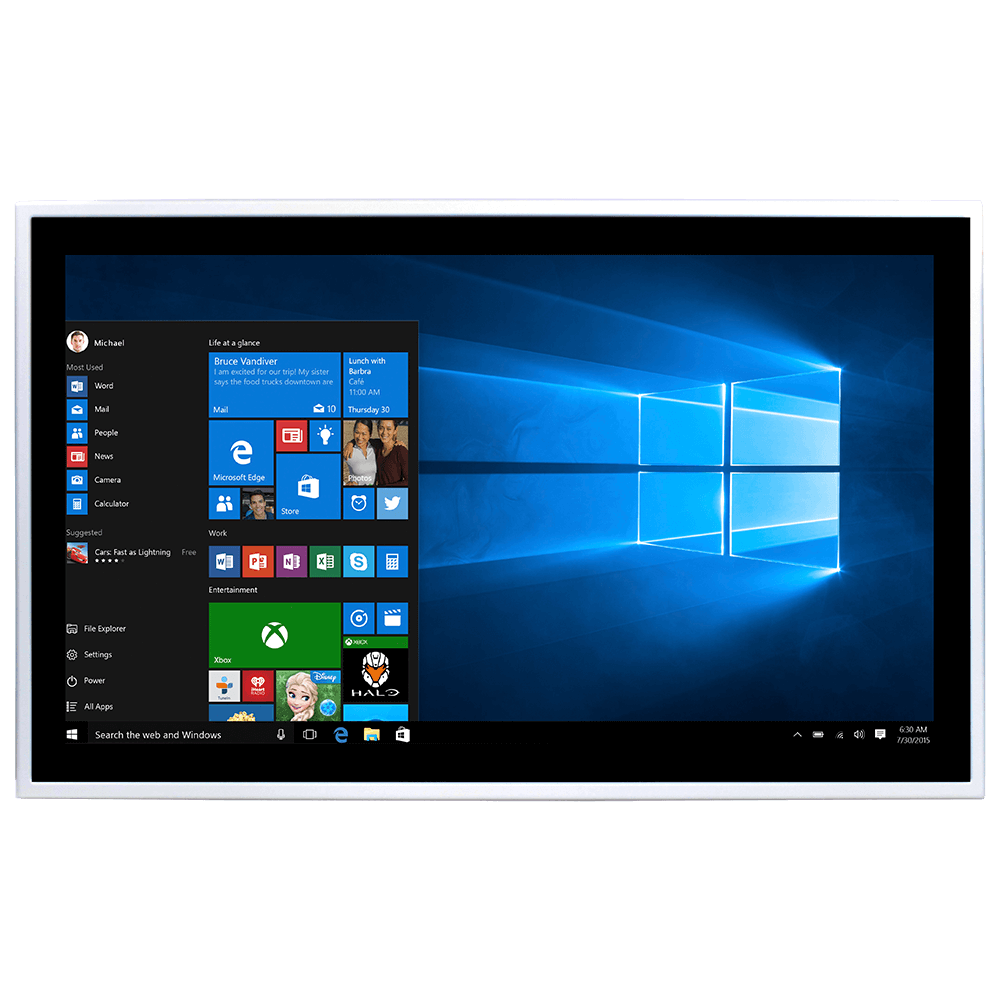

ASLAN-W722C-M

ASLAN-W722C-M

Arbor
SKU: 57900300
21.5" Fanless Industrial Panel PC, 1920x1080 TFT LCD, PCAP touch, Intel Celeron J1900 2GHz, up to 8GB DDR3L RAM, 2x2.5" outside-accessible Drive Bays, 4xCOM, 4xUSB, 3xGbE LAN, 9-36VDC-in, -20...+55C
Price on request
Available
Available

System configuration
Price with VAT
Price on request
External Power Adapter
Price on request
Mini-PCIe Extension 1
Price on request
Additional Options 1
Price on request
System configuration
Price with VAT
Price on request
External Power Adapter
Price on request
Mini-PCIe Extension 1
Price on request
Additional Options 1
Price on request

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Input Interface
DVI-I
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT, Realtek 8111E
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232
2
RS-232/485
2
USB Total
4
USB 2.0
3
USB v3.x
1
Drive interfaces
SATA 3
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DVI-I, 3xRJ45 Ethernet, 4xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
27.7 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10
Dimensions and weight
Width
536 mm
Height
332 mm
Depth
48.4 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
7 kg
Gross Weight
7.7 kg
