APL-NUC-N3350

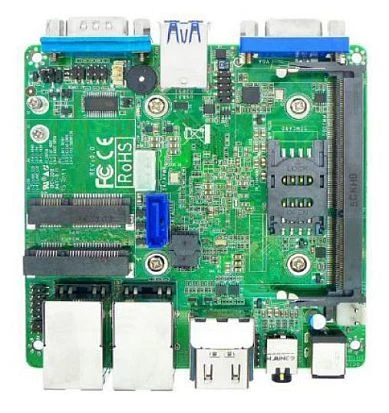

APL-NUC-N3350

ICOP
SKU: 08386000
Intel Apollo Lake N3350 CPU Module, DP/eDP, 2xGbE LAN, 5xCOM, 4xUSB 3.0, 2xUSB 2.0, 8bit GPIO, mPCIe, SATA, M.2 (M-key 2242), Audio, 12VDC
Price on request
Available
Available

Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Number of CPU
1
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Interfaces
2xHDMI, VGA
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
USB 2.0
1
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
SIM Card slots
1
Mini-PCIe/Mini Card
2
Connectors
Internal Ports
SATA 3, 10-pin GPIO, 5-pin SMBus
Connectors

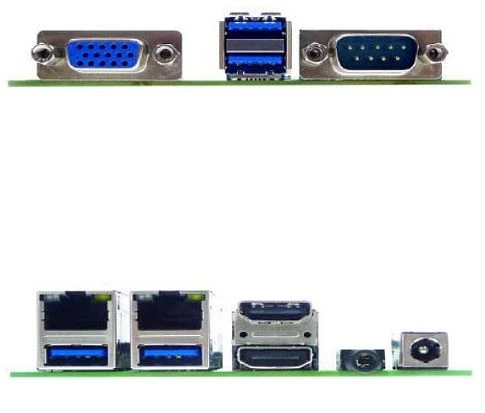

DB9, DB15 VGA, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Audio, DC Input
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
158 mm
Length
164 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Gross Weight
0.5 kg
