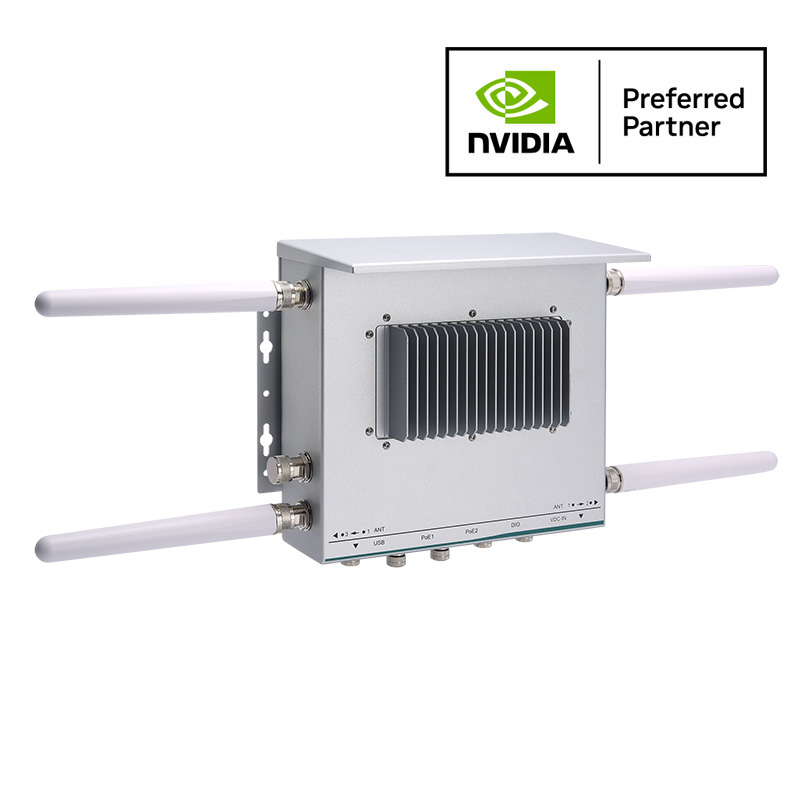

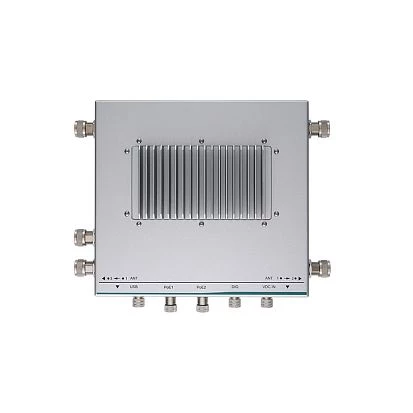

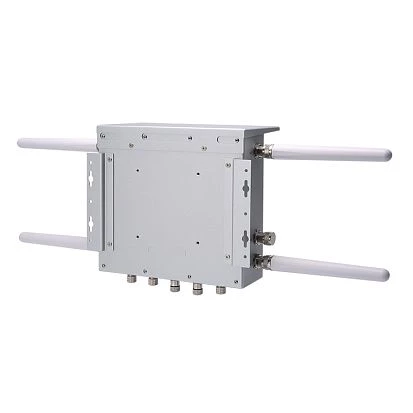

AIE810-ONX-16GB
AXIOMTEK
SKU: 80160600
Rugged Edge AI System, IP67 Full, Nvidia Jetson Orin NX SoC, Ampere 1024-core GPU, 16GB LPDDR5 RAM, M12 Connectors (2xGbE PoE, 2xUSB 2.0, 8-bit DIO), 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VDC-in M12
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP67
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX (8-core Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3)
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Ethernet
Total Ethernet
2
PoE+ 10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
2
USB 2.0
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

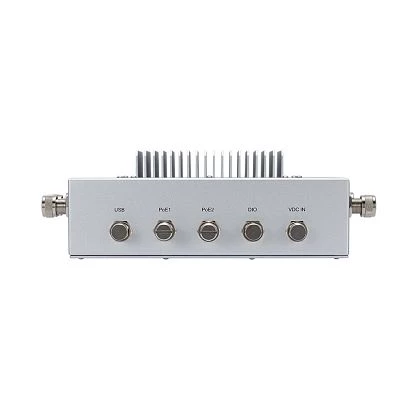

M12 DC-in, M12 DIO, 2xM12 LAN, 1xM12 A-code USB
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu 22.04
Dimensions and weight
Width
240 mm
Height
93.4 mm
Depth
220 mm
Operating Conditions
Operating Temperature
-25..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4 kg
Gross Weight
7.2 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP67
Type
Fanless
