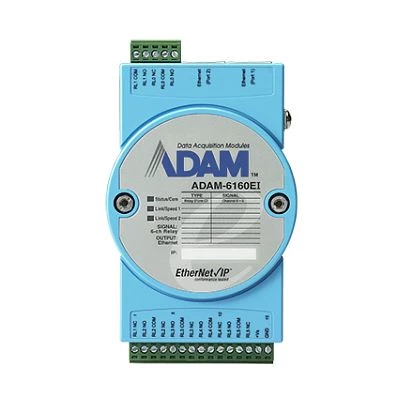

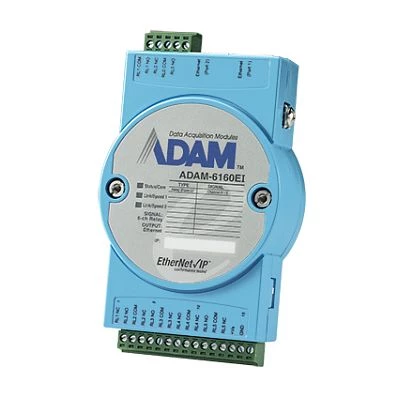

ADAM-6160EI-AE
Advantech
SKU: 66349800
6-ch Relay Output EtherNet/IP Module
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
EtherNet/IP adapter
Digital Output
Total channels of digital output
6
Type
Electromagnitic relay
Relay (Form A)
1
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Relay (Form C)
5
Contact rating of relay (Form C)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
70 mm
Depth
27 mm
Height
122 mm
Operating Conditions
Operating Temperature
-10..70 °C
Dimensions
Net Weight
0.17 kg
Gross Weight
0.25 kg
