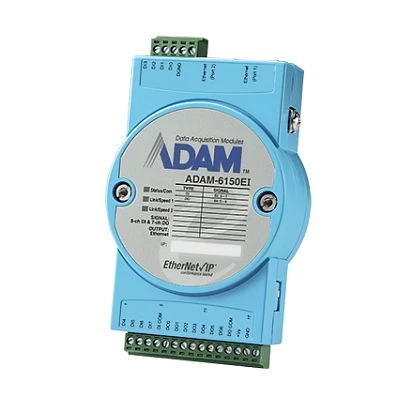

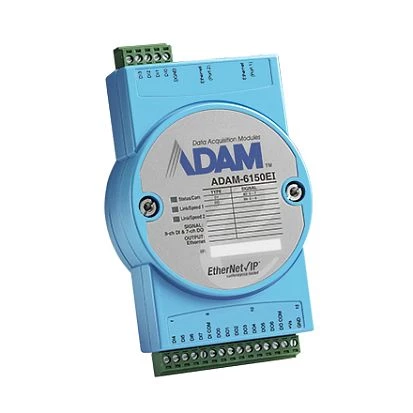

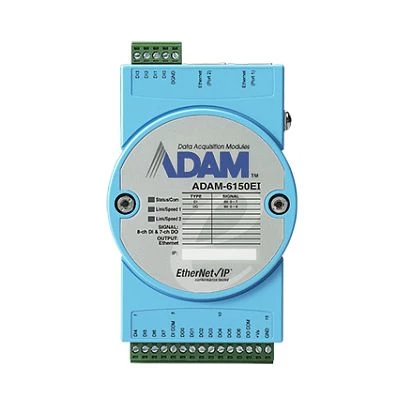

ADAM-6150EI-AE
Advantech
SKU: 66349200
15-ch Isolated Digital I/O EtherNet/IP Module
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
EtherNet/IP adapter
Digital Input
Total channels of digital input
8
Type
Dry contact, Wet contact
Level of Logic "0"
0~3 V
Level of Logic "1"
10~30 V
Sink/Source
Sink, Dry: Source
Isolation of Digital Input
2500 V
Digital Output
Total channels of digital output
7
Type
Open collector
Sink/Source
Sink
Output voltage
8~35 V
Max. load current
100 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
70 mm
Depth
27 mm
Height
122 mm
Operating Conditions
Operating Temperature
-10..70 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.22 kg
