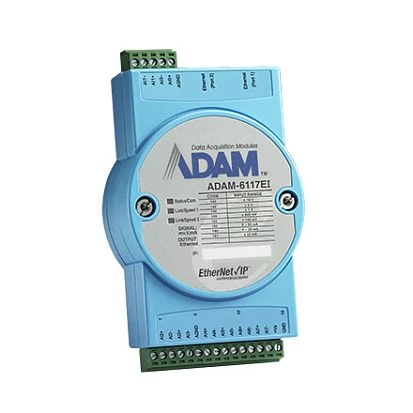

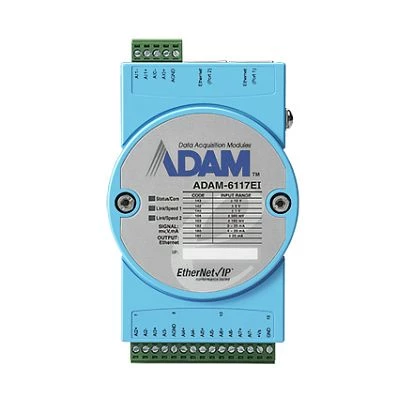

ADAM-6117EI-AE
Advantech
SKU: 66348900
8-ch Isolated Analog Input EtherNet/IP Module
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
EtherNet/IP adapter
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
8
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
70 mm
Depth
27 mm
Height
122 mm
Operating Conditions
Operating Temperature
-10..70 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.22 kg
