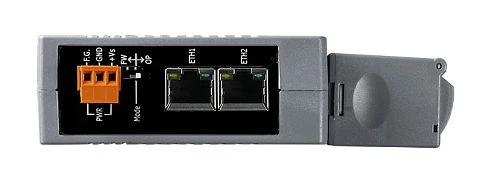

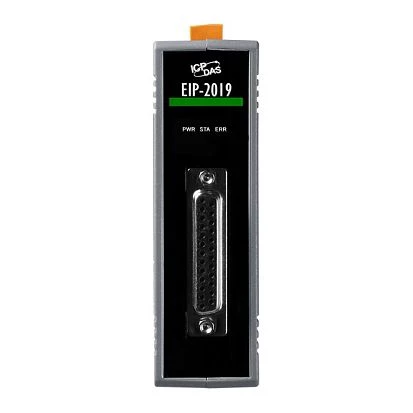

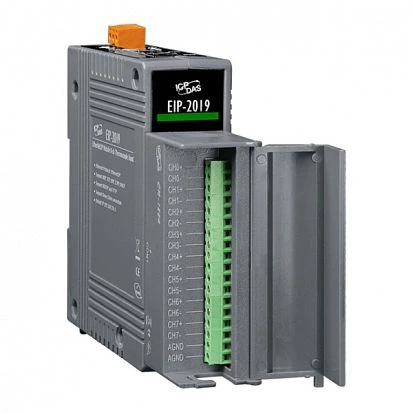

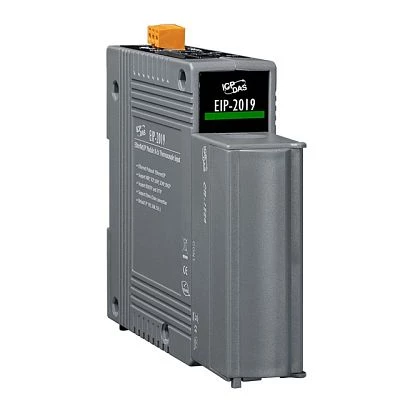

EIP-2019/S
ICP DAS
SKU: 06559200
Isolated 8-ch Thermocouple AI EtherNet/IP Module with CN-1824 Daughter Board (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherNet/IP adapter
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-150 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Current range
-20...+20 mA
Sampling rate
10 Hz
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С
Connectors
Connectors
DB25
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
90 mm
Height
110 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.08 kg
Gross Weight
0.16 kg
