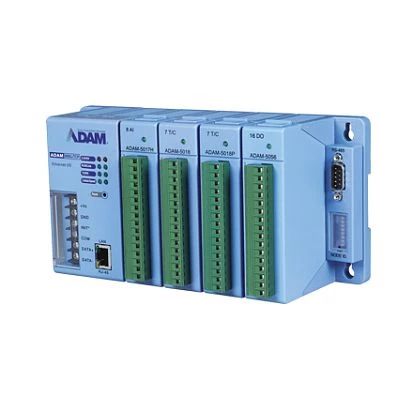

ADAM-5510KW/TCP-AE
Advantech
SKU: 66369700
4-slot Ethernet-enabled SoftLogic Controller
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
80188
Memory
Default on Board Memory
0 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
768 MB
Expansion Module
Quantity of Slots
4
Supported Module
ADAM-5000 series
Software
Operating System Installed
MS DOS
Programming Method
C/C++, IEC 61131-3
Development Software
KW Multiprog
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
Additional Functions
Watchdog timer type
Hardware
Dimensions and weight
Width
231 mm
Depth
75 mm
Height
110 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-10..70 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Gross Weight
1.18 kg
