ABOX-5210G/W480
SINTRONES
SKU: 08969100

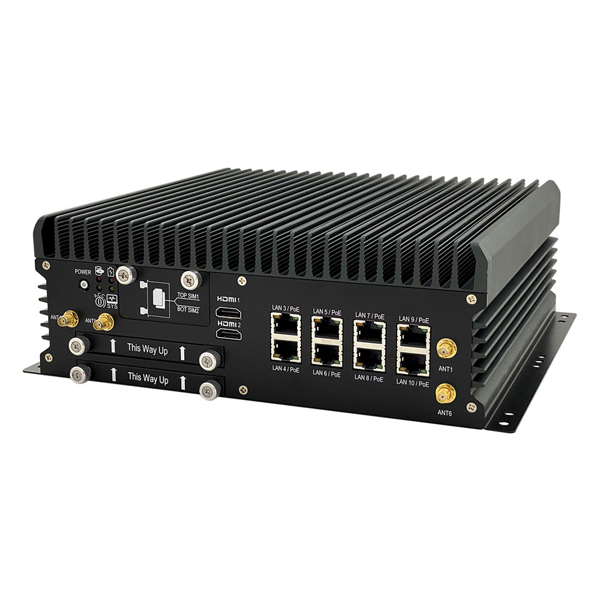

In-Vehicle Fanless Computer with Intel Xeon, Core i9,7,5,3 10th gen, 2xDDR4 2666 SO-DIMM, chip W480, up to NVIDIA GeForce GTX1060 GPU, 2x2.5", 2xHDMI, 3xDP, 10xGbE, 3xCOM, 4xUSB 3.0, 2xMini PCIe, 3xM.2A-E, B, M, 2xSIM, 9-48V DC-in, -40...+70C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Xeon
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Nvidia GeForce GTX 1050 Ti
Ethernet
10/100/1000 Mbit/s
10
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 4xUSB, Mic In, Line In, Line Out, 10xRJ45 Ethernet
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
250 mm
Depth
95 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2.5G at 5~500Hz, 1hr/axis with SSD
Shock
Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
5.3 kg
Gross Weight
6 kg
