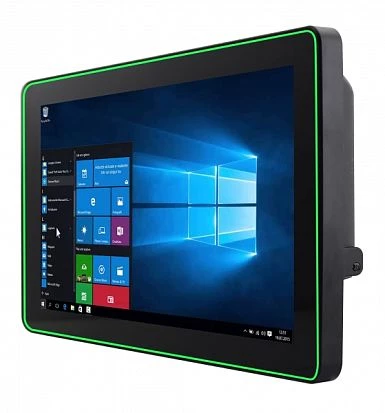

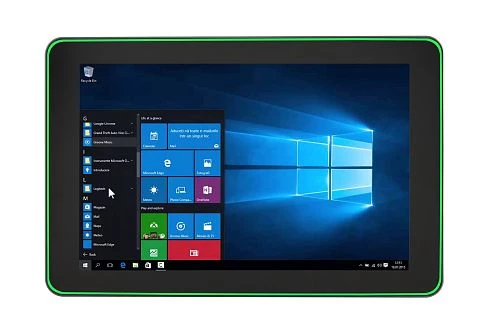

10.1" Panel PC, 1280x800, Projective Capacitive Multi-touch (PCAP), Intel Celeron N2930 1.83GHz, 4GB DDR3 SO-DIMM RAM, 128GB SSD, COM, 2xUSB, 2xGbit LAN, PoE, Speaker 1W, RGB LED status light bar, 12V DC-In
W10IB3S-PCH2LB
Winmate
SKU: 08672700
Price on request
Available on order
Available on order
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration

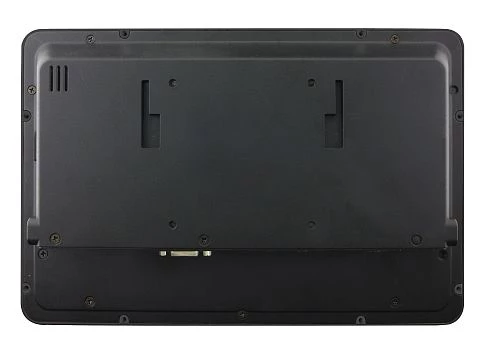

Desktop, Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
300 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
LED / Controls
LED
Power LED, Programmable LED Light Bar Indicator
Controls
On/Off
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows IoT Enterprise 10, Windows Embedded 8.1 Industry
Dimensions and weight
Width
263.28 mm
Height
171 mm
Depth
35.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
4 kg
Gross Weight
5 kg
