GOT-317B-ADL-TRD
AXIOMTEK
SKU: 10780500
17" Fanless Panel PC, IP65 Front, 1280x1024, 350cd/m2, Resistive Touch, Intel 14/13th Gen Core i9/i7/i5/i3/Pentium CPU, Up to 32GB DDR4 RAM, 2xHDMI, 1x2.5GbE LAN, 1xGbE LAN, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, 1x2.5" Bay, 1xM.2 Key-E, MiniPCIe, 10-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Pentium
Chipset
Chipset
Intel H610
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i219-V 10/100/1000 Mbps, Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
SATA 3
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

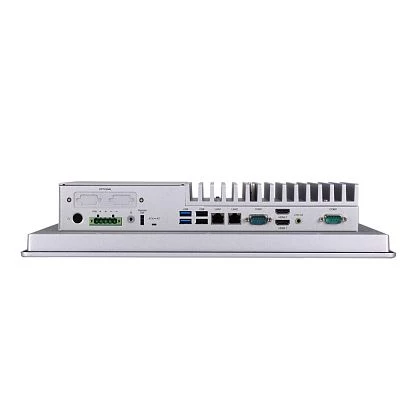

2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Consumption
120 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
398 mm
Height
330.4 mm
Depth
77.5 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
Dimensions
Net Weight
7.36 kg
Gross Weight
11 kg
