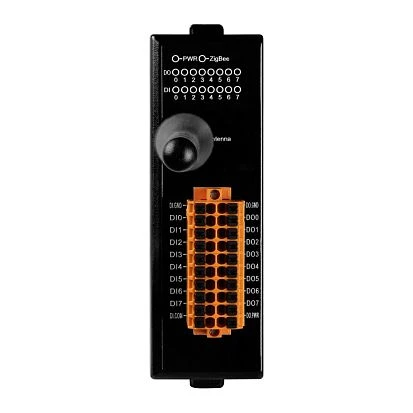

ZT-2055-IOG
ICP DAS
SKU: 56267800
ZigBee I/O Group (Pair-connection) Module with the 8-channel Isolated Digital Input and 8-channel Isolated Digital Output (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
RF Interface
Radio Standard
ZigBee (Host, Coordinator), ZigBee (Slave, Router)
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
8
Type
Dry contact, Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Dry: Source, Wet: Sink/Source
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
650 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
87 mm
Height
110 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.15 kg
Gross Weight
0.51 kg
