ZigBee module ZT-2000

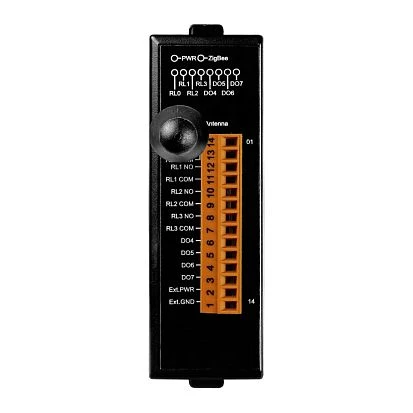

ZT-2043-IOG

ZT-2043-IOG

ICP DAS
SKU: 56417000
ZigBee I/O Group (Pair-connection) Module with the 14-channel Isolated Digital Output (ZigBee Coordinator and ZigBee Router)(RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
RF Interface
Radio Standard
ZigBee (Host, Coordinator)
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Output
Total channels of digital output
14
Type
Open collector
Output voltage
5~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
87 mm
Height
110 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.26 kg
Gross Weight
0.26 kg
