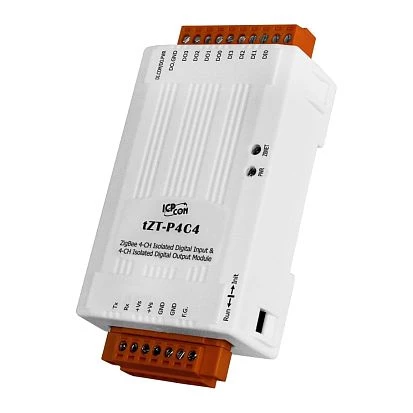

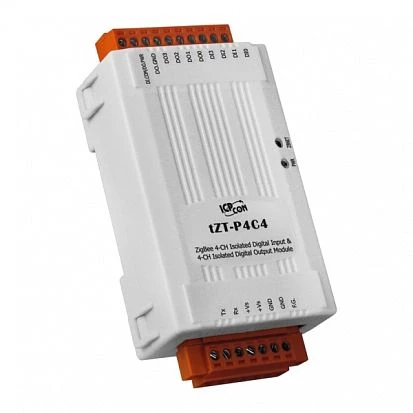

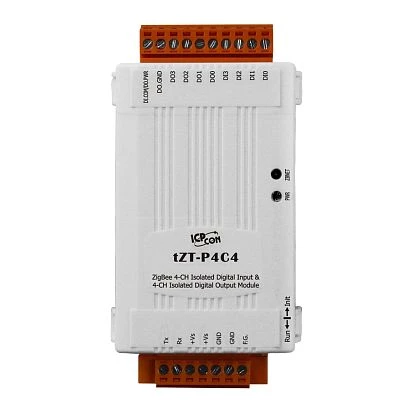

tZT-P4C4
ICP DAS
SKU: 08262800
Wireless 4-channel Isolated Digital Input and 4-channel Isolated Digital Output Module, ISM 2.4GHz Operating Frequency, IEEE802.15.4/ ZigBee 2.405GHz/ 2.48GHz, 11dBm/12.59mW (FCC) (Max. 19 dBm/79.43mW)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
RF Interface
Radio Standard
ZigBee (Slave, Router)
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~5 V
Level of Logic "1"
6~50 V
Sink/Source
Source
Number of channels
4
Counter capacity
16 Bit
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
700 mA
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.15 kg
Gross Weight
0.51 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
RF Interface
Radio Standard
ZigBee (Slave, Router)
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~5 V
Level of Logic "1"
6~50 V
Sink/Source
Source
Number of channels
4
Counter capacity
16 Bit
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
700 mA
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.15 kg
Gross Weight
0.51 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
RF Interface
Radio Standard
ZigBee (Slave, Router)
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~5 V
Level of Logic "1"
6~50 V
Sink/Source
Source
Number of channels
4
Counter capacity
16 Bit
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
700 mA
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.15 kg
Gross Weight
0.51 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
RF Interface
Radio Standard
ZigBee (Slave, Router)
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~5 V
Level of Logic "1"
6~50 V
Sink/Source
Source
Number of channels
4
Counter capacity
16 Bit
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
700 mA
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.15 kg
Gross Weight
0.51 kg
