ZigBee module ZT-2000
ZT-2053-IOG

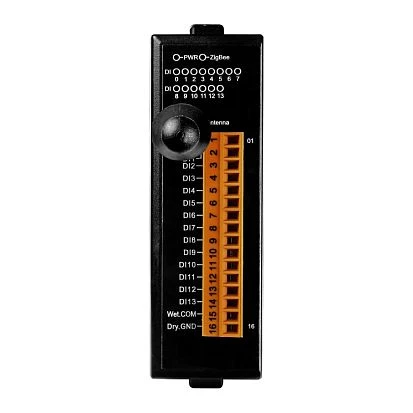

ZT-2053-IOG

ICP DAS
SKU: 56417100
ZigBee I/O Group (Pair-connection) Module with the 14-channel Isolated Digital Input (ZigBee Coordinator & ZigBee Router)(RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
RF Interface
Radio Standard
ZigBee (Slave, Router)
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
14
Type
Dry contact, Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Wet: Sink/Source
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
87 mm
Height
110 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.26 kg
Gross Weight
0.26 kg
