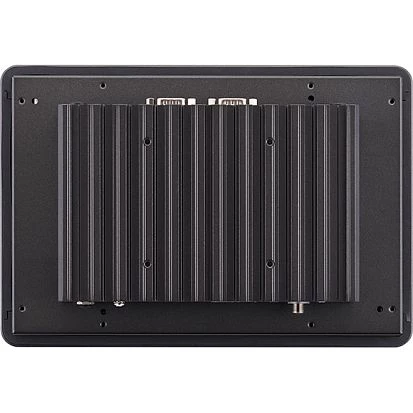

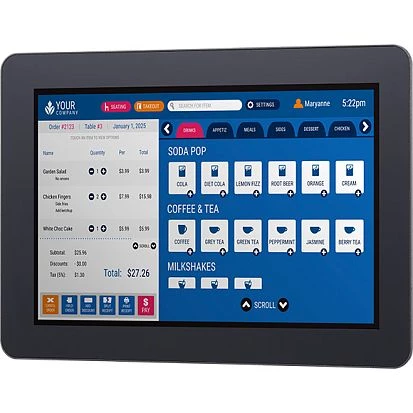

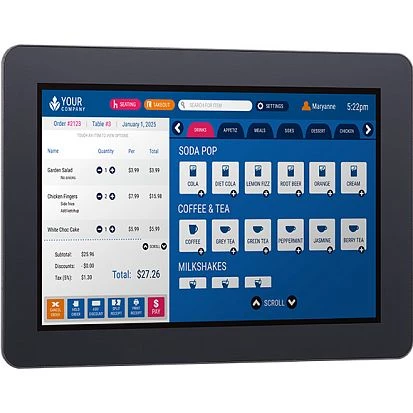

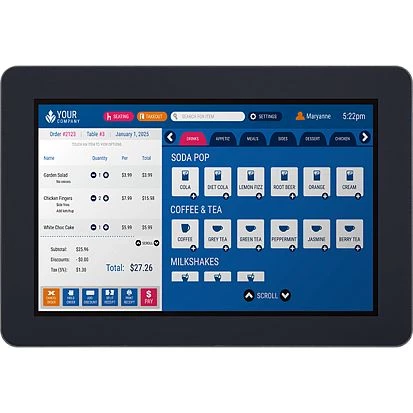

XPPC-10-10N97

XPPC-10-10N97

NEXCOM
SKU: 80021000
10.1" Fanless Panel PC, IP65 Front, 1280x800, 400cd/m2, PCAP Touch, Optical Bonding, Intel N97 3.6GHz CPU, Up to 16GB DDR4 RAM, HDMI, 2xGbE LAN, 1xCOM, 2xUSB 2.0, 2xUSB 3.2, 1xM.2 2242 Key-M, 1xMini-PCIe mSATA/WiFi/BT, 12VDC-in w/ 60W PSU
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
CPU onboard
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
mSATA
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off
Connectors
Internal Ports
10-pin GPIO, 4-pin Line-out
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
260.3 mm
Height
178.3 mm
Depth
47.9 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE, FCC Class A
Safety
LVD
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.62 kg
Gross Weight
2.7 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
CPU onboard
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
mSATA
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off
Connectors
Internal Ports
10-pin GPIO, 4-pin Line-out
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
260.3 mm
Height
178.3 mm
Depth
47.9 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE, FCC Class A
Safety
LVD
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.62 kg
Gross Weight
2.7 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
CPU onboard
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
mSATA
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off
Connectors
Internal Ports
10-pin GPIO, 4-pin Line-out
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
260.3 mm
Height
178.3 mm
Depth
47.9 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE, FCC Class A
Safety
LVD
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.62 kg
Gross Weight
2.7 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
CPU onboard
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
mSATA
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off
Connectors
Internal Ports
10-pin GPIO, 4-pin Line-out
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
260.3 mm
Height
178.3 mm
Depth
47.9 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE, FCC Class A
Safety
LVD
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.62 kg
Gross Weight
2.7 kg

Documentation
XPPC-10-10N97-Datasheet.pdf
Documentation
XPPC-10-10N97-Datasheet.pdf
Documentation
XPPC-10-10N97-Datasheet.pdf
Documentation
XPPC-10-10N97-Datasheet.pdf

Get a Quote

NEXCOM
SKU: 80021000
XPPC-10-10N97
XPPC-10-10N97
XPPC-10-10N97
XPPC-10-10N97
XPPC-10-10N97
XPPC-10-10N97

Recommended products

QEC-PPC-M-150TP QEC-PPC-M-150TP QEC-PPC-M-150TP
ICOP
QEC-PPC-M-150TP
Fanless Panel PC with 15" 1024x768 TFT LCD, Resistive Touch, Vortex86EX2 M:533MHz/S:400MHz, 512MB/1GB DDRIII, 2GB SLC eMMC, EtherCAT/Modbus/Ethernet, 3xUSB 2.0, 1xUSB-C, 2xEtherCAT RJ45, 1xGbE PoE LAN, HD Audio, 0...+60шC, 12-50VDC-in
APPC210-C21-01 APPC210-C21-01 APPC210-C21-01 APPC210-C21-01
NEXCOM
APPC210-C21-01
21.5" Fanless Panel PC, IP65 Front, 1920x1080, 500cd/m, PCAP Touch, Intel Ultra 5 125U 4.3GHz CPU, 8GB DDR5 RAM, HDMI, 4xGbE LAN, 4xUSB 3.2, 1xCOM, Audio, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 1xMiniPCIe, 12/19/24VDC-in
APPC160-C21-01 APPC160-C21-01 APPC160-C21-01 APPC160-C21-01
NEXCOM
APPC160-C21-01
15.6" Fanless Panel PC, IP65 Front, 1920x1080, 400cd/m, PCAP Touch, Intel Ultra 5 125U 4.3GHz CPU, 8GB DDR5 RAM, HDMI, 4xGbE LAN, 4xUSB 3.2, 1xCOM, Audio, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 1xMiniPCIe, 12/19/24VDC-in
GOT112A-TWL-WCD GOT112A-TWL-WCD GOT112A-TWL-WCD
AXIOMTEK
GOT112A-TWL-WCD
12.1" Fanless Panel PC, IP65/NEMA4 Front, 1280x800, 400cd/m2, PCAP Touch, Intel N150 3.6GHz CPU, 8GB LPDDR5 RAM, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xUSB Type-C DP Alt., 2xCOM, Audio, 2.5" Bay, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 9-36VDC-in
GOT115A-TWL-WCD GOT115A-TWL-WCD GOT115A-TWL-WCD
AXIOMTEK
GOT115A-TWL-WCD
15.6" Fanless Panel PC, IP65/NEMA4 Front, 1366x768, 400cd/m2, PCAP Touch, Intel N150 3.6GHz CPU, 8GB LPDDR5 RAM, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xUSB Type-C DP Alt., 2xCOM, Audio, 2.5" Bay, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 9-36VDC-in
GOT110A-TWL-WCD GOT110A-TWL-WCD GOT110A-TWL-WCD GOT110A-TWL-WCD
AXIOMTEK
GOT110A-TWL-WCD
10.1" Fanless Panel PC, IP65/NEMA4 Front, 1280x800, 350cd/m2, PCAP Touch, Intel N150 3.6GHz CPU, 8GB LPDDR5 RAM, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xUSB Type-C DP Alt., 2xCOM, Audio, SIM slot, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 9-36VDC-in
iPPC-6831-IoT iPPC-6831-IoT iPPC-6831-IoT
ICP DAS
iPPC-6831-IoT
15" Touch Panel PC with Intel Atom E3845 1.91GHz CPU, 4GB DDR3, 128KB MRAM, 32GB SSD, 2xGB LAN, 3xUSB 2.0, 16GB CF, 3 expansion slots and WES7 OS, NEMA4/IP65 Front Panel
PPC-150P-TGL-64G PPC-150P-TGL-64G PPC-150P-TGL-64G PPC-150P-TGL-64G
ICOP
PPC-150P-TGL-64G
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 64GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
SP-241C-1N305 SP-241C-1N305 SP-241C-1N305
Arbor
SP-241C-1N305
23.8" Fanless Panel PC, IP66 Front, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i3-N305 CPU, Up to 16GB DDR5 RAM, HDMI, 2x2.5GbE LAN, 3xCOM, 2xUSB 3.2, 2xUSB 2.0, 1x2.5" Bay, 1xM.2 Key-M (SATA), 1xM.2 Key-E, 10-36VDC-in
PPC-150P-TGL--M PPC-150P-TGL--M PPC-150P-TGL--M PPC-150P-TGL--M
ICOP
PPC-150P-TGL--M
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, Up to 64GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-150P-TGL-8G PPC-150P-TGL-8G PPC-150P-TGL-8G PPC-150P-TGL-8G
ICOP
PPC-150P-TGL-8G
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 8GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-150P-TGL-32G PPC-150P-TGL-32G PPC-150P-TGL-32G PPC-150P-TGL-32G
ICOP
PPC-150P-TGL-32G
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 32GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PALD-090T-PCAP--M PALD-090T-PCAP--M PALD-090T-PCAP--M PALD-090T-PCAP--M
ICOP
PALD-090T-PCAP--M
9" Fanless Panel PC, IP65 Front, 1024x600, 300cd/m2, PCAP Touch, Intel Alder Lake N50 CPU, Up to 16GB DDR5 RAM, 1x2.5GbE LAN, 1xCOM, 2xUSB 3.2, 1xM.2 Key-M, 1xM.2 Key-E, Audio, 12-36VDC-in
PPC-150P-TGL-16G PPC-150P-TGL-16G PPC-150P-TGL-16G PPC-150P-TGL-16G
ICOP
PPC-150P-TGL-16G
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 16GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-104T-TGL-16G PPC-104T-TGL-16G PPC-104T-TGL-16G PPC-104T-TGL-16G
ICOP
PPC-104T-TGL-16G
10.4" Fanless Panel PC, IP65 Front, 800x600, 500cd/m2, Resistive Touch, Intel Core i5-1135G7 CPU, 16GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-104T-TGL-32G PPC-104T-TGL-32G PPC-104T-TGL-32G PPC-104T-TGL-32G
ICOP
PPC-104T-TGL-32G
10.4" Fanless Panel PC, IP65 Front, 800x600, 500cd/m2, Resistive Touch, Intel Core i5-1135G7 CPU, 32GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-104T-TGL-8G PPC-104T-TGL-8G PPC-104T-TGL-8G PPC-104T-TGL-8G
ICOP
PPC-104T-TGL-8G
10.4" Fanless Panel PC, IP65 Front, 800x600, 500cd/m2, Resistive Touch, Intel Core i5-1135G7 CPU, 8GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
PPC-104T-TGL-64G PPC-104T-TGL-64G PPC-104T-TGL-64G PPC-104T-TGL-64G
ICOP
PPC-104T-TGL-64G
10.4" Fanless Panel PC, IP65 Front, 800x600, 500cd/m2, Resistive Touch, Intel Core i5-1135G7 CPU, 64GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
