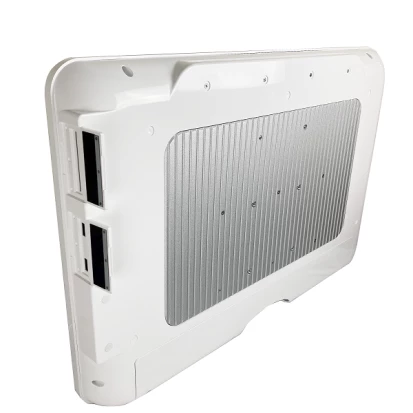

WMP-24P-IP54-IP0P-i5
Wincomm
SKU: 11232200
23.8" Fanless Medical Panel PC, IP65/IP54 Front/Rear, 1920x1080, PCAP Touch, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 128GB NVME SSD, DP, 2xHDMI, 2xGbE LAN, 4xUSB 3.2, 2xCOM, 1x2.5" Bay, 1xPCIe x4, Audio, 14-24VDC-in with 180W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP54
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
FCBGA1744
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
PCI Express x4
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Battеry Status
Controls
On/Off, 1xReset, Function Keys, Volume Keys
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
14..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
180 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
594 mm
Height
397 mm
Depth
56 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
Medicine
EN 60601-1
Dimensions
Net Weight
9 kg
Gross Weight
10.5 kg
