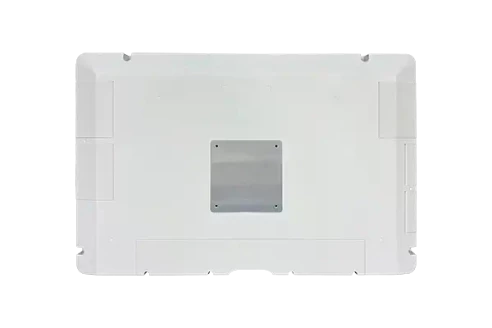

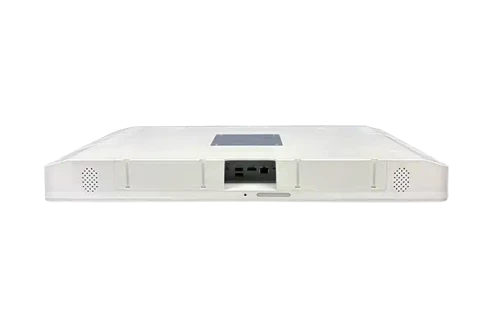

WMP-24U-IP0A-7
Wincomm
SKU: 80389800

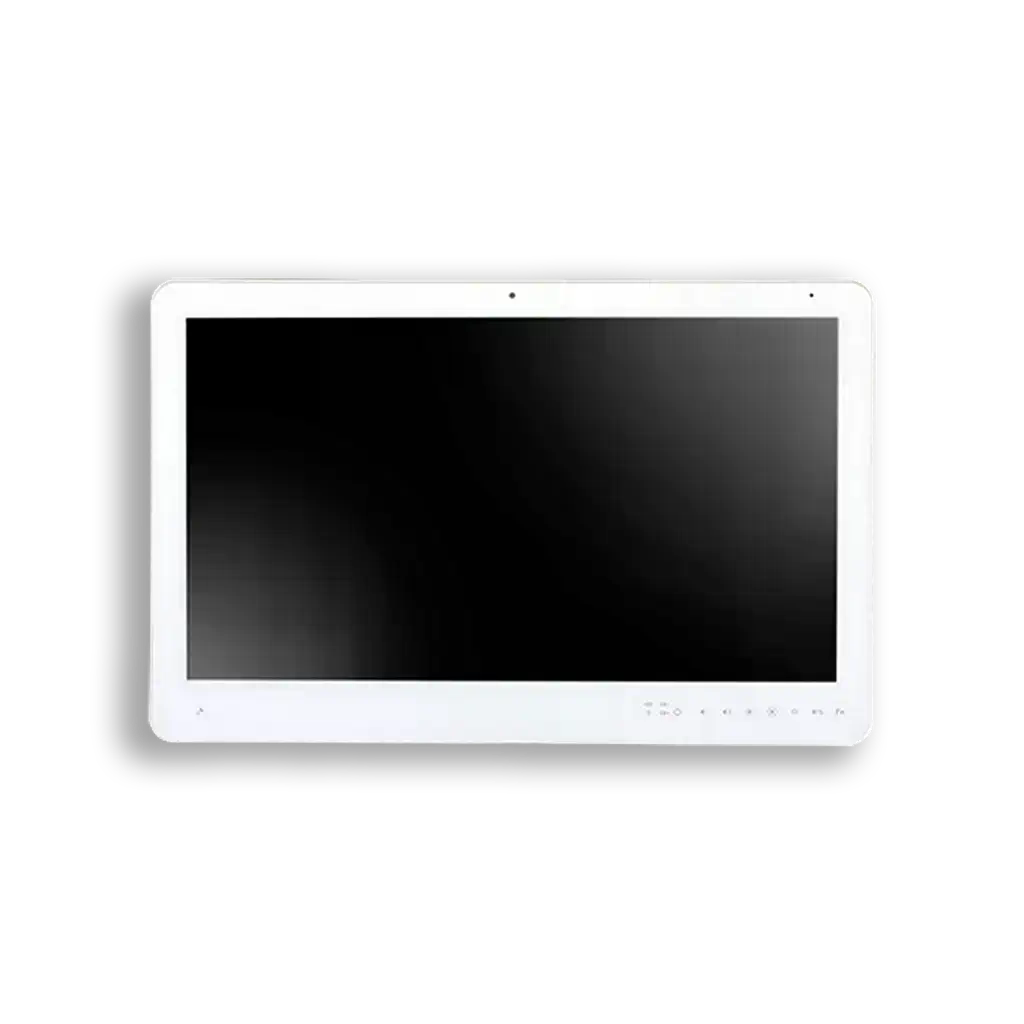

23.8" Medical Panel PC, IP65 Front, 1920x1080, 250 cd/m2, PCAP Touch, Intel Core Ultra 7 255U CPU, 8GB DDR5 RAM, 128GB NVMe SSD, 1xHDMI, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xUSB-C 3.2, 1xCOM, 1xM.2 Key-M, 1xM.2 Key-E, 3xBat Opt, 19-24VDC-in with PSU
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration

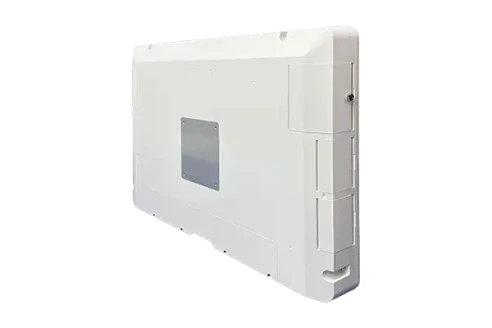

Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Arrow Lake
Processor Installed
Intel Core Ultra 7 255U
Socket
FCBGA2049
Max CPU frequency
5.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
5
USB 2.0
2
USB v3.x
3
Drive interfaces
M.2
2
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, 1xReset, Control Buttons, Volume Keys
Connectors
Connectors

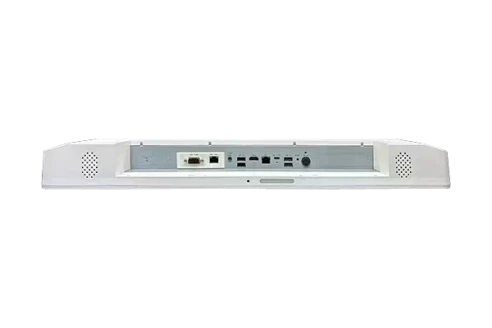

DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, USB type C
System Power Input
Input Voltage DC
19..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
158.4 W
AC input voltage
100-240 V
Supported Types of Power Supply

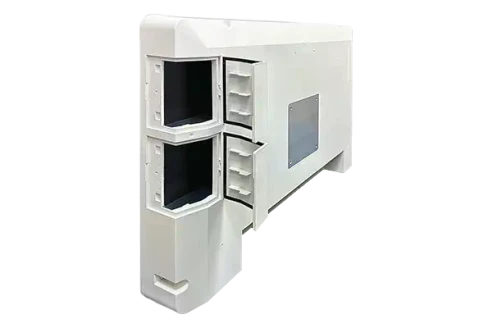

Li-battery Pack
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
580 mm
Height
375.4 mm
Depth
61.2 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
Medicine
UL 60601-1, EN 60601-1
Dimensions
Net Weight
6.8 kg
Gross Weight
8.15 kg
