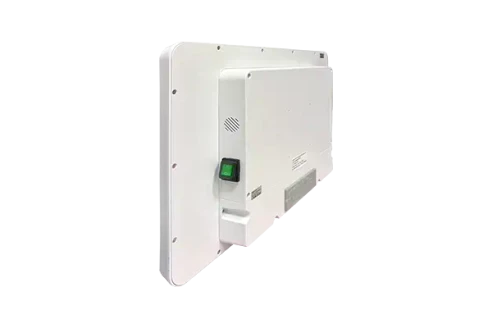

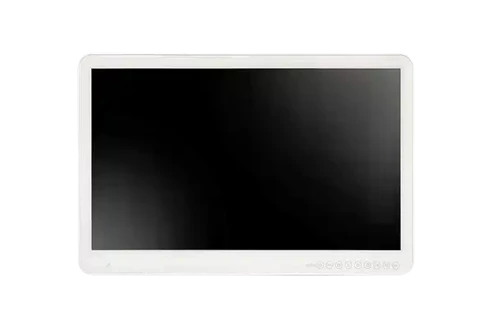

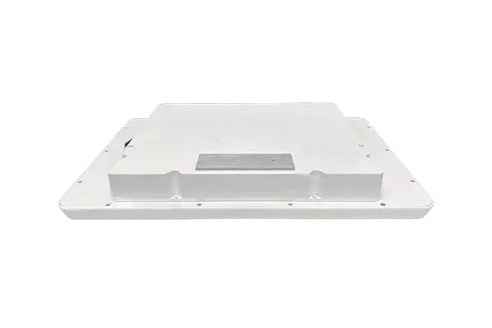

WMP-24T-PIS-L-Series
Wincomm
SKU: 80392300
23.8" Medical Panel PC, IP65/54 Front/Rear, 1920x1080, 250cd/m2, PCAP Touch, Intel 13th Gen Core i7/i5/i3/Celeron CPU, Up to 64GB DDR5 RAM, 1xDP, 2xHDMI, Up to 3xLAN, 4xUSB 3.2, 2xUSB 2.0, Up to 2xCOM, 1xM.2 Key-M, 1xM.2 Key-E, 100-240AC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis

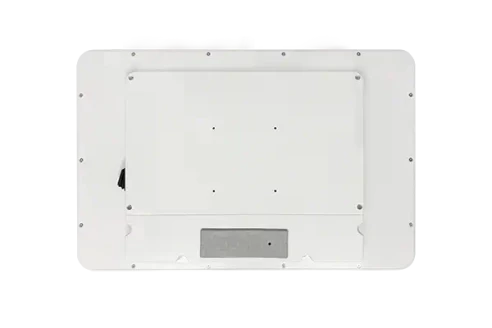

Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP54
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Socket
FCBGA1744
CPU Support Type
Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
3
10/100/1000 Mbit/s
2
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons, Function Keys, Volume Keys

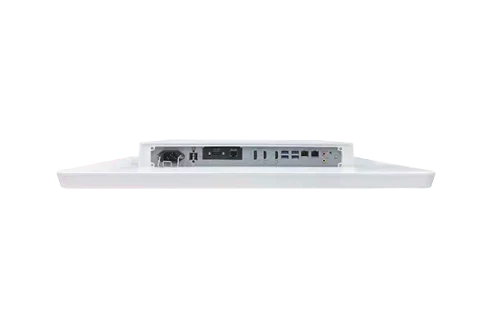

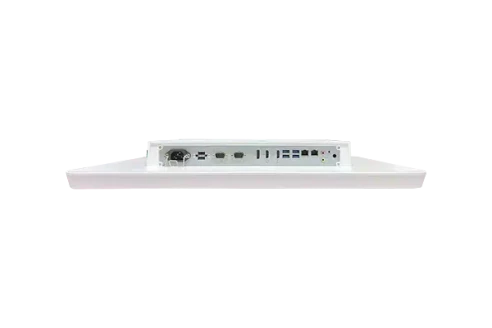

Connectors
Connectors
2xDB9, 2xHDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, AC Input, Display Port
Power Supply
Type of Power Supply
Internal
Output Power
250 W
AC input voltage
100-240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
586.5 mm
Height
375.5 mm
Depth
68 mm
Operating Conditions
Operating Temperature
0..35 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
Medicine
UL 60601-1, EN 60601-1
Dimensions
Net Weight
8.6 kg
Gross Weight
9.6 kg
