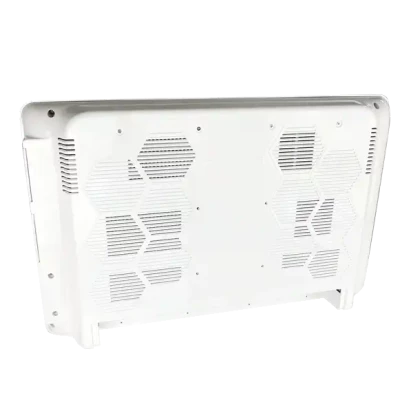

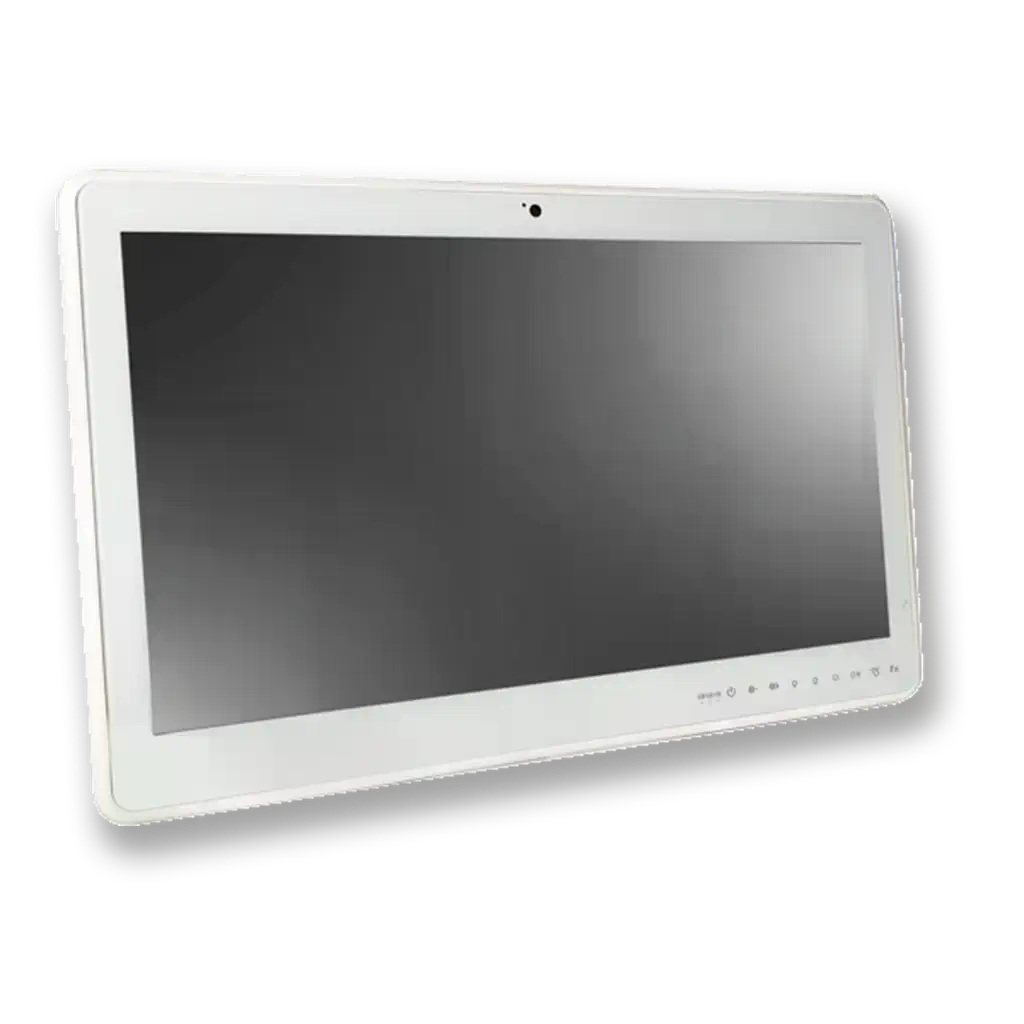

WMP-22S
Wincomm
SKU: 80387000
21.5" Medical Panel PC, IP65 Front, EN 60601-1, 1920x1080, PCAP Touch, 250cd/m2, Intel 12/13/14th Gen Core i7/i5/i3 CPU, Up to 96GB DDR5 RAM, 1xDP, 2xHDMI, 2xLAN, 2xCOM, 4xUSB 3.2, 1xUSB-C, M.2 Key-M, M.2 Key-B/M, M.2 Key-E, 1xPCIe x4 (40W), 14-19VDC
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Type
Fan
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake, Raptor Lake, Bartlett Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
MXM Options Available – Contact Sales
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
5
USB v3.x
5
Drive interfaces
M.2
1
Extension Slots
Total
4
PCI Express x4
1
M.2
3
M.2 Form Factor
2280 M, 2230 E, 2280 B
LED / Controls
LED
Power LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
2x5pin ATX, 2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, USB type C
System Power Input
Input Voltage DC
14..19 V
Power Supply
Type of Power Supply
Medical, External power adapter AC/DC
Output Power
250 W
AC input voltage
100-240 V
Supported Types of Power Supply
Li-battery Pack
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
541 mm
Height
352.9 mm
Depth
74.7 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC, VCCI
Medicine
UL 60601-1, EN 60601-1
Safety
UL/cUL
Dimensions
Net Weight
8 kg
Gross Weight
9.4 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Wall VESA 100
