582TM-All-in-One-Cart-PC--M
DT Research
SKU: 80138600

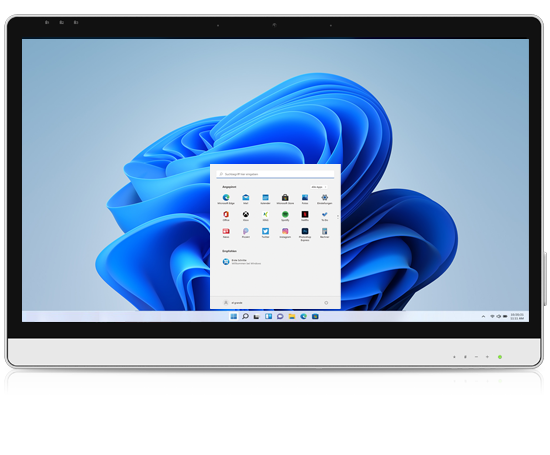

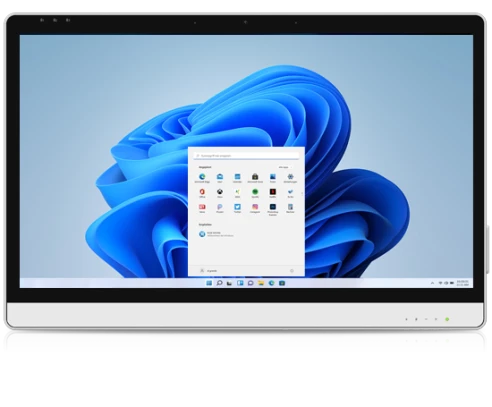

21.5" Medical-Cart PC, IP65 Front, 1920x1080, PCAP Touch, Intel Core Ultra 5/7 CPU, Up to 64GB DDR5 RAM, Up to 1TB M.2 SSD, HDMI, 1xGbE LAN, 4xUSB 3.2, 2xUSB 2.0, 2xCOM, Opt. (IR/RFID/Smart Card), 3x90Wh Battery Opt., 3xDC-out Opt., 19VDC-in with PSU
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Meteor Lake
Socket
FCBGA2049
CPU Support Type
Core Ultra 5, Core Ultra 7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
COM Total
2
RS-232
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors

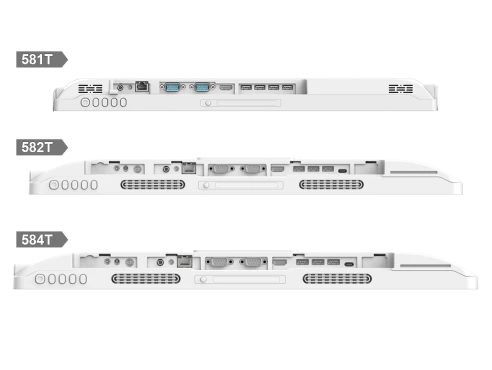

2xDB9, HDMI, RJ45 Ethernet, 5xUSB, Mic In, Line Out, DC Input, Smart card slot, USB type C, 3xDC Output
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
AC input voltage
100-240 V
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
516.9 mm
Height
345.9 mm
Depth
40.4 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class B
EMI
CCC (GB9254, GB 17625.1)
Medicine
IEC 60601-1
Dimensions
Net Weight
6.64 kg
Gross Weight
8.1 kg
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Meteor Lake
Socket
FCBGA2049
CPU Support Type
Core Ultra 5, Core Ultra 7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
COM Total
2
RS-232
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
2xDB9, HDMI, RJ45 Ethernet, 5xUSB, Mic In, Line Out, DC Input, Smart card slot, USB type C, 3xDC Output
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
AC input voltage
100-240 V
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
516.9 mm
Height
345.9 mm
Depth
40.4 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class B
EMI
CCC (GB9254, GB 17625.1)
Medicine
IEC 60601-1
Dimensions
Net Weight
6.64 kg
Gross Weight
8.1 kg
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Meteor Lake
Socket
FCBGA2049
CPU Support Type
Core Ultra 5, Core Ultra 7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
COM Total
2
RS-232
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
2xDB9, HDMI, RJ45 Ethernet, 5xUSB, Mic In, Line Out, DC Input, Smart card slot, USB type C, 3xDC Output
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
AC input voltage
100-240 V
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
516.9 mm
Height
345.9 mm
Depth
40.4 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class B
EMI
CCC (GB9254, GB 17625.1)
Medicine
IEC 60601-1
Dimensions
Net Weight
6.64 kg
Gross Weight
8.1 kg
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Meteor Lake
Socket
FCBGA2049
CPU Support Type
Core Ultra 5, Core Ultra 7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
COM Total
2
RS-232
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
2xDB9, HDMI, RJ45 Ethernet, 5xUSB, Mic In, Line Out, DC Input, Smart card slot, USB type C, 3xDC Output
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
AC input voltage
100-240 V
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
516.9 mm
Height
345.9 mm
Depth
40.4 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class B
EMI
CCC (GB9254, GB 17625.1)
Medicine
IEC 60601-1
Dimensions
Net Weight
6.64 kg
Gross Weight
8.1 kg
