WLPM-V22-MBKFT

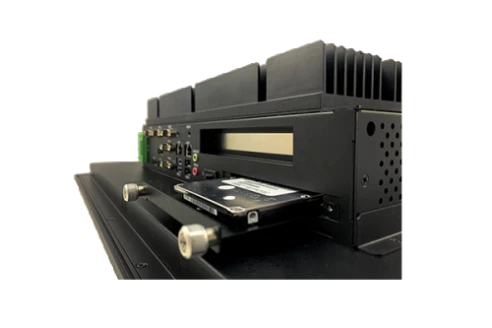

WLPM-V22-MBKFT

Wincomm
SKU: 57170500
21.5" Fanless Modular Panel PC with 250 nits, 1920 x 1080, Resistive touch screen, AMD Ryzen V1605B 2GHz, 4GB DDR4 2400, 128GB SSD, 2xRS232/422/485, 2xUSB 3.2, 2xUSB 2.0, 2xGbE LAN, Audio, IP66 front, 19V DC, 0..50C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
AMD Ryzen V1605B
Max CPU frequency
3.6 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Storage Cage
2.5" Cage External
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Extension Slots
Total
4
PCI Express x8
1
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xRJ45 Ethernet, 2xUSB, Mic In, Line Out, DC Input, Display Port, 2xDisplayPort, 2xUSB (4-pin), 2xDB9 Male
System Power Input
Input Voltage DC
19..28 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
150 W
Dimensions and weight
Width
364.6 mm
Height
584.3 mm
Depth
121.4 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
5 kg
Gross Weight
7 kg
