WLP-7F20-22

WLP-7F20-22

Wincomm
SKU: 56546000

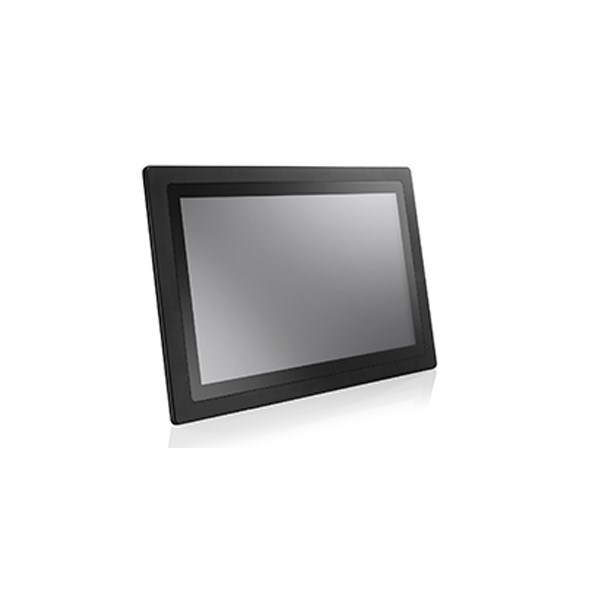

21,5" Fanless Panel PC with 1920x1080, 250 nits, resistive touch screen, Intel Core i5-6200U 2.3 GHz, 4GB DDR4, 128GB SSD,2x Display Port, RS-232, RS-232/422/485, 4xUSB, 2xGbE LAN, Audio
Price on request
Available
Available

Construction
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i5-6200U
Max CPU frequency
2.8 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Connectors
Connectors
2xDB9, 2xRJ45, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
17..32 V
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
10 kg
Gross Weight
12 kg
Construction
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i5-6200U
Max CPU frequency
2.8 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Connectors
Connectors
2xDB9, 2xRJ45, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
17..32 V
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
10 kg
Gross Weight
12 kg
Construction
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i5-6200U
Max CPU frequency
2.8 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Connectors
Connectors
2xDB9, 2xRJ45, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
17..32 V
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
10 kg
Gross Weight
12 kg
Construction
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i5-6200U
Max CPU frequency
2.8 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Connectors
Connectors
2xDB9, 2xRJ45, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
17..32 V
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
10 kg
Gross Weight
12 kg

Get a Quote
