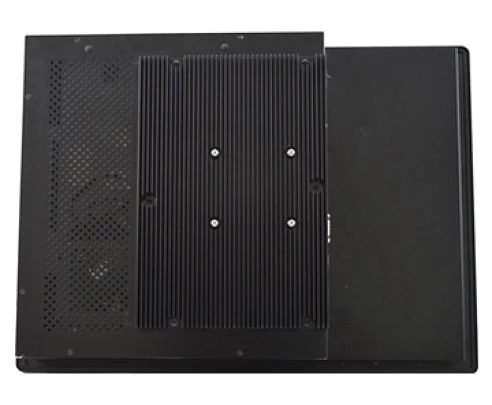

WLP-7F20-16

Wincomm
SKU: 56545700
15,6" Fanless Panel PC with 1366x768, 400 nits, resistive touch screen, Intel Core i5-6200U 2.3 GHz, 4GB DDR4, 128GB SSD,2x Display Port, RS-232, RS-232/422/485, 4xUSB, 2xGbE LAN, Audio
Price on request
Available
Available

Construction
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i5-6200U
Max CPU frequency
2.8 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Connectors
Connectors
2xDB9, 2xRJ45, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
17..32 V
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
10 kg
Gross Weight
12 kg

Get a Quote

Wincomm
SKU: 56545700
WLP-7F20-16
WLP-7F20-16
WLP-7F20-16
