W32IK3S-PTA2

W32IK3S-PTA2

Winmate
SKU: 56924500

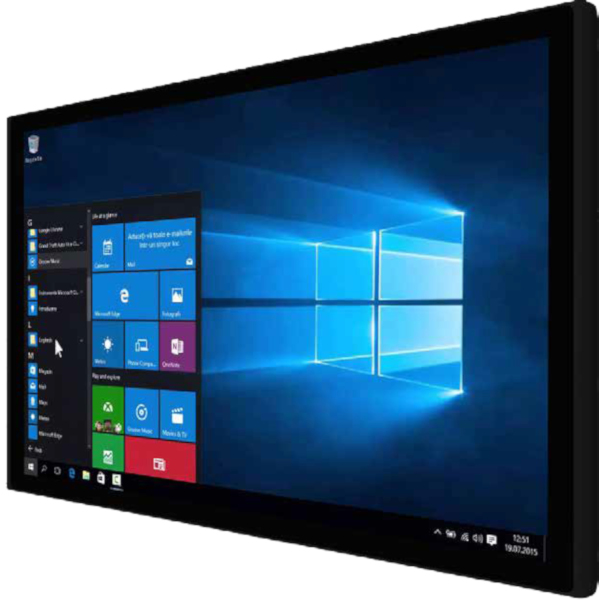

32" TFT LCD Panel PC, 1920x1080, 400 nits, Intel Core i5-7200U 2.5GHz CPU,Up to 16GB DDR4 2133MHz RAM, 64GB M.2 SSD, HDMI, 2xGbE, 1xRS-232/422/485, 2xUSB 3.0, 12VDC-in
Price on request
Available
Available

Construction
Mounting Configuration
VESA 200, VESA 200x100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
32 "
Maximum resolution
1920x1080 Dots
Brightness
400 Cd/m2
Contrast Ratio
4000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
CPU Support Type
Core i5
Max CPU frequency
3.1 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Form-factor
DDR4
Maximum Memory
16 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Dimensions and weight
Width
799 mm
Height
502.7 mm
Depth
63.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
14.5 kg
Gross Weight
16 kg
