W24IK7T-GCA2

W24IK7T-GCA2

Winmate
SKU: 56962800

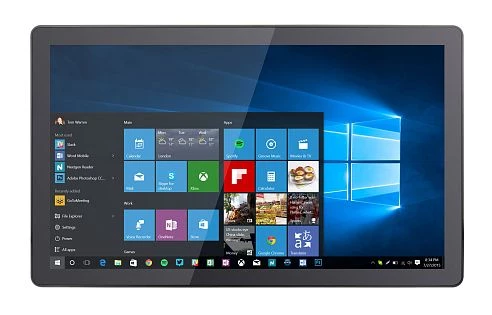

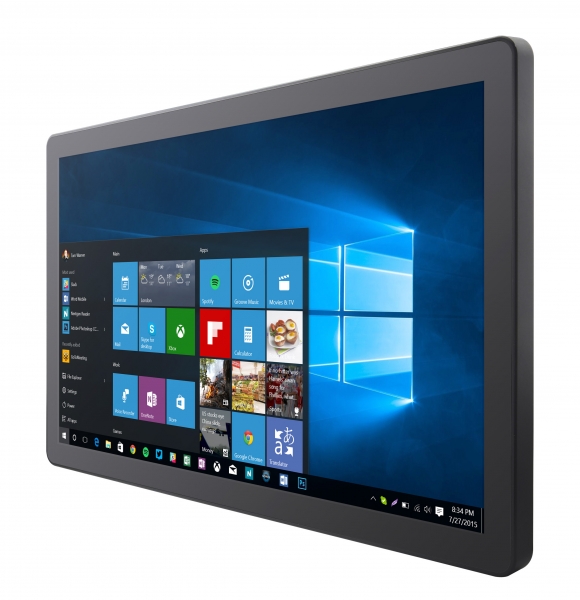

23,8" Panel PC TFT LCD with Intel Core i5-7500T, Capacitive touch screen, 4xSO-DIMM, 4Gb DDR4, m.2 SSD 128GB, 3xCOM, 4xUSB, 2xGbE, DP, HDMI, 12VDC
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i3
Socket
CPU onboard
Max CPU frequency
2.9 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
LED / Controls
Controls
On/Off
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..12 V
Power Consumption
40 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
588 mm
Height
358 mm
Depth
66 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
7 kg
Gross Weight
9 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i3
Socket
CPU onboard
Max CPU frequency
2.9 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
LED / Controls
Controls
On/Off
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..12 V
Power Consumption
40 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
588 mm
Height
358 mm
Depth
66 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
7 kg
Gross Weight
9 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i3
Socket
CPU onboard
Max CPU frequency
2.9 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
LED / Controls
Controls
On/Off
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..12 V
Power Consumption
40 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
588 mm
Height
358 mm
Depth
66 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
7 kg
Gross Weight
9 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.8 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i3
Socket
CPU onboard
Max CPU frequency
2.9 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
LED / Controls
Controls
On/Off
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..12 V
Power Consumption
40 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
588 mm
Height
358 mm
Depth
66 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
7 kg
Gross Weight
9 kg

Get a Quote
